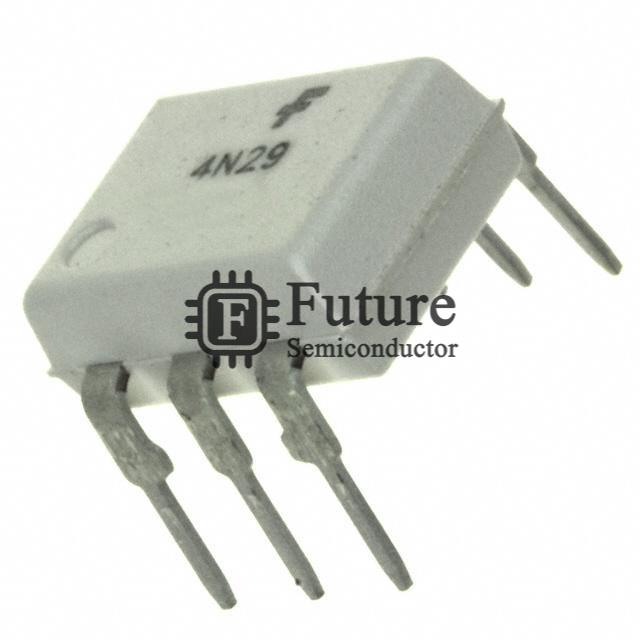

ON Semiconductor 4N29M

Name: 4N29M
Brand: ON Semiconductor
SKU: 4N29M
Price: 0.6 USD
Availability: InStock
Rating: 4.7 (292 reviews)

MFG Part Number: 4N29M

Available Quantity: 31170 Pieces

Reference Price: USD 0.6

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - OPTOISO 4.17KV DARL W/BASE 6DIP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Optoisolators - Transistor, Photovoltaic Output

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: 4N29M.pdf

Request Quotation for 4N29M

Company Name

Contact Person

Phone Number

Address

Email

Message

4N29M Specifications

Manufacturer Part Number	4N29M
Future Part Number	FT-4N29M
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
4N29M Status (Lifecycle)	In Stock
Part Status	Active
Number of Channels	1
Voltage - Isolation	4170Vrms
Current Transfer Ratio (Min)	100% @ 10mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	5µs, 40µs (Max)
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Darlington with Base
Voltage - Output (Max)	30V
Current - Output / Channel	150mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	80mA
Vce Saturation (Max)	1V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
4N29M Weight	Contact Us
Replacement Part Number	4N29M-FT
