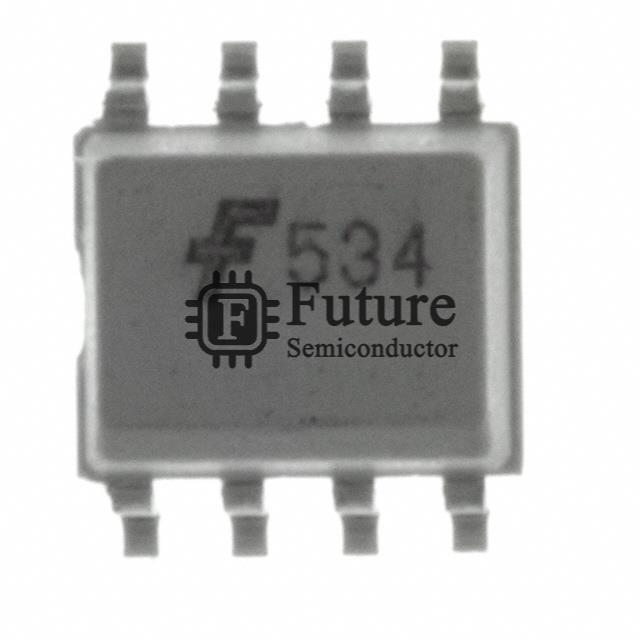

ON Semiconductor HCPL0534R1

Name: HCPL0534R1
Brand: ON Semiconductor
SKU: HCPL0534R1
Availability: InStock
Rating: 4.8 (509 reviews)

MFG Part Number: HCPL0534R1

Available Quantity: 48890 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - OPTOCOUPLR TRANS 2CHAN HS 8SOIC

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Optoisolators - Transistor, Photovoltaic Output

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: HCPL0534R1.pdf

Request Quotation for HCPL0534R1

Company Name

Contact Person

Phone Number

Address

Email

Message

HCPL0534R1 Specifications

Manufacturer Part Number	HCPL0534R1
Future Part Number	FT-HCPL0534R1
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
HCPL0534R1 Status (Lifecycle)	In Stock
Part Status	Obsolete
Number of Channels	2
Voltage - Isolation	2500Vrms
Current Transfer Ratio (Min)	15% @ 16mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	450ns, 300ns
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor
Voltage - Output (Max)	20V
Current - Output / Channel	8mA
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	25mA
Vce Saturation (Max)	-
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
HCPL0534R1 Weight	Contact Us
Replacement Part Number	HCPL0534R1-FT
