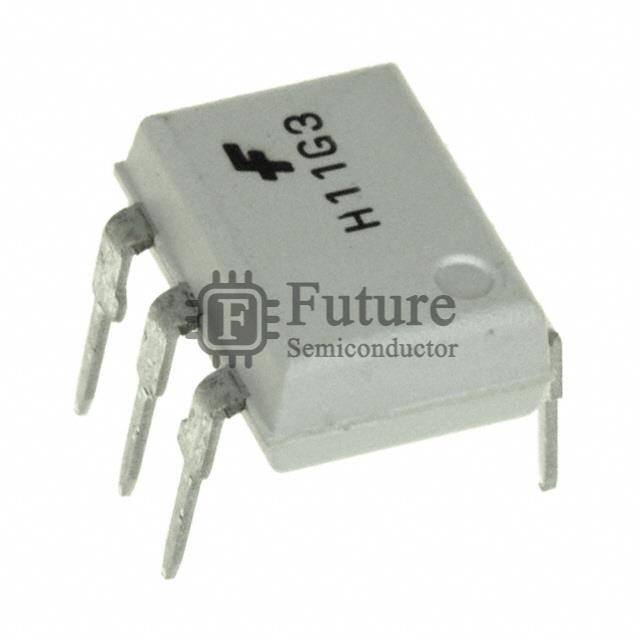

ON Semiconductor H11G3M

Name: H11G3M
Brand: ON Semiconductor
SKU: H11G3M
Availability: InStock
Rating: 4.6 (596 reviews)

MFG Part Number: H11G3M

Available Quantity: 94930 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: ON Semiconductor

Brief Description: - OPTOISO 7.5KV DARL W/BASE 6DIP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Optoisolators - Transistor, Photovoltaic Output

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: H11G3M.pdf

Request Quotation for H11G3M

Company Name

Contact Person

Phone Number

Address

Email

Message

H11G3M Specifications

Manufacturer Part Number	H11G3M
Future Part Number	FT-H11G3M
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
H11G3M Status (Lifecycle)	In Stock
Part Status	Obsolete
Number of Channels	1
Voltage - Isolation	7500Vpk
Current Transfer Ratio (Min)	200% @ 1mA
Current Transfer Ratio (Max)	-
Turn On / Turn Off Time (Typ)	5µs, 100µs
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Darlington with Base
Voltage - Output (Max)	55V
Current - Output / Channel	-
Voltage - Forward (Vf) (Typ)	1.3V
Current - DC Forward (If) (Max)	60mA
Vce Saturation (Max)	1.2V
Operating Temperature	-40°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.300", 7.62mm)
Supplier Device Package	6-DIP
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
H11G3M Weight	Contact Us
Replacement Part Number	H11G3M-FT
