Home / Products / Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single / SI5857DU-T1-GE3
Manufacturer Part Number | SI5857DU-T1-GE3 |
---|---|
Future Part Number | FT-SI5857DU-T1-GE3 |
SPQ / MOQ | Contact Us |
Packing Material | Reel/Tray/Tube/Others |
Series | LITTLE FOOT® |
SI5857DU-T1-GE3 Status (Lifecycle) | In Stock |
Part Status | Obsolete |
FET Type | P-Channel |
Technology | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss) | 20V |
Current - Continuous Drain (Id) @ 25°C | 6A (Tc) |
Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
Rds On (Max) @ Id, Vgs | 58 mOhm @ 3.6A, 4.5V |
Vgs(th) (Max) @ Id | 1.5V @ 250µA |
Gate Charge (Qg) (Max) @ Vgs | 17nC @ 10V |
Vgs (Max) | ±12V |
Input Capacitance (Ciss) (Max) @ Vds | 480pF @ 10V |
FET Feature | Schottky Diode (Isolated) |
Power Dissipation (Max) | 2.3W (Ta), 10.4W (Tc) |
Operating Temperature | -55°C ~ 150°C (TJ) |
Mounting Type | Surface Mount |

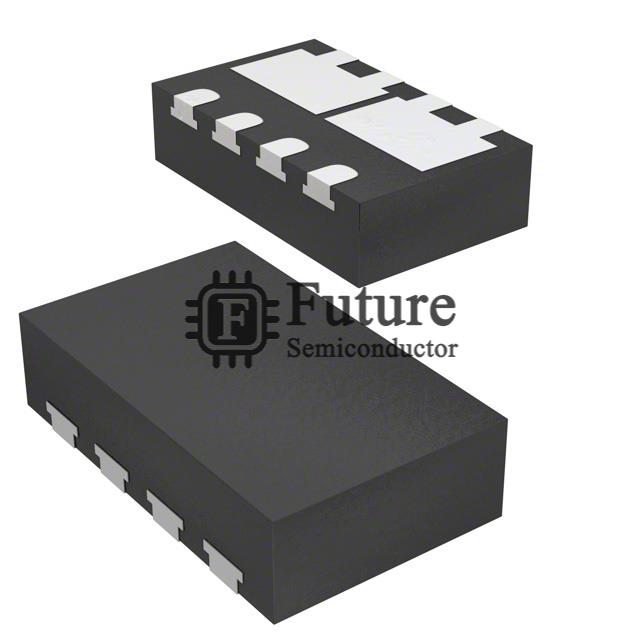

Supplier Device Package | PowerPAK® ChipFet Dual |
Package / Case | PowerPAK® ChipFET™ Dual |
Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
SI5857DU-T1-GE3 Weight | Contact Us |
Replacement Part Number | SI5857DU-T1-GE3-FT |
