Home / Products / Power Supplies - Board Mount / DC DC Converters / PTH03020WAZ

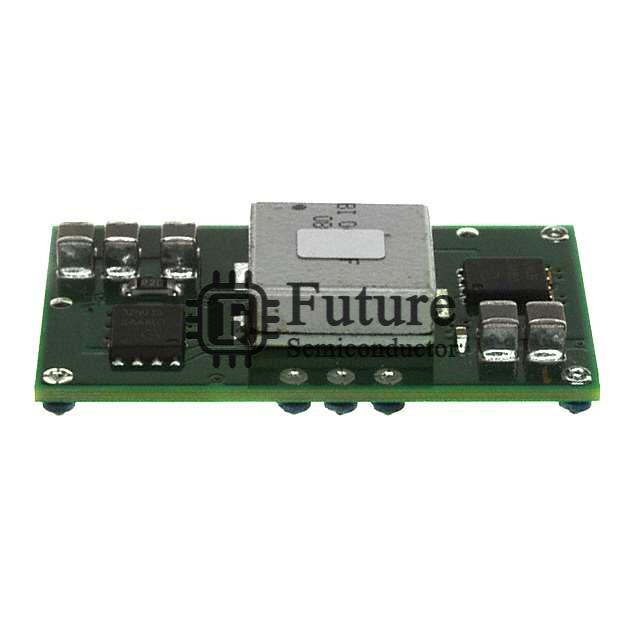

Texas Instruments PTH03020WAZ
- MFG Part Number
- PTH03020WAZ
- Available Quantity
- 11140 Pieces
- Reference Price
- USD 21.8
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Texas Instruments
- Brief Description
- PTH03020W DC DC CONVERTER 0.8-2.5V 55W
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- DC DC Converters
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- PTH03020WAZ.pdf
PTH03020WAZ Specifications
| Manufacturer Part Number | PTH03020WAZ |
|---|---|
| Future Part Number | FT-PTH03020WAZ |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | PTH03020W |
| PTH03020WAZ Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.95V |
| Voltage - Input (Max) | 3.65V |
| Voltage - Output 1 | 0.8 ~ 2.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 22A |
| Power (Watts) | - |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 95% |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module |
| Size / Dimension | 1.49" L x 0.87" W x 0.38" H (38.0mm x 22.1mm x 9.6mm) |
| Supplier Device Package | - |
| Control Features | - |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| PTH03020WAZ Weight | Contact Us |
| Replacement Part Number | PTH03020WAZ-FT |
