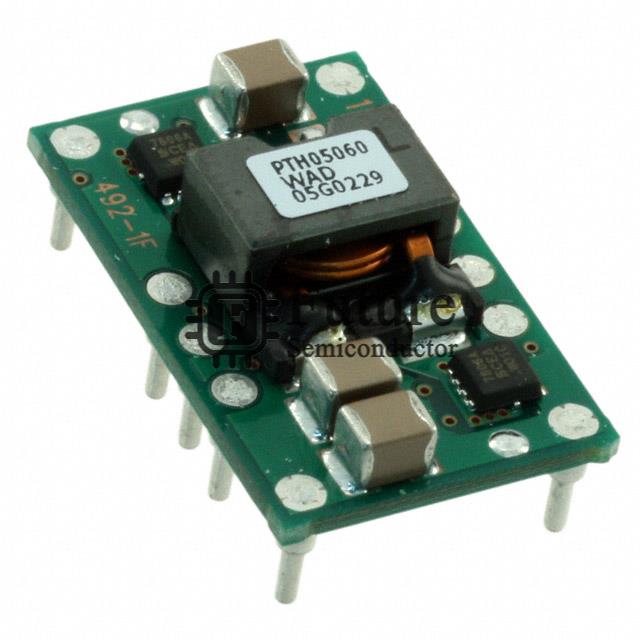

Texas Instruments PTH05060WAD

Name: PTH05060WAD
Brand: Texas Instruments
SKU: PTH05060WAD
Price: 14.248 USD
Availability: InStock
Rating: 4.7 (584 reviews)

MFG Part Number: PTH05060WAD

Available Quantity: 17110 Pieces

Reference Price: USD 14.248

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Texas Instruments

Brief Description: PTH05060W DC DC CONVERTER 0.8-3.6V 10A

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: DC DC Converters

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: PTH05060WAD.pdf

Request Quotation for PTH05060WAD

Company Name

Contact Person

Phone Number

Address

Email

Message

PTH05060WAD Specifications

Manufacturer Part Number	PTH05060WAD
Future Part Number	FT-PTH05060WAD
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	PTH05060W
PTH05060WAD Status (Lifecycle)	In Stock
Part Status	Active
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.8 ~ 3.6V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	10A
Power (Watts)	-
Voltage - Isolation	-
Applications	ITE (Commercial)
Features	-
Operating Temperature	-40°C ~ 85°C
Efficiency	94%
Mounting Type	Through Hole
Package / Case	10-DIP Module
Size / Dimension	1.00" L x 0.62" W x 0.35" H (25.4mm x 15.7mm x 8.9mm)
Supplier Device Package	-
Control Features	-
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
PTH05060WAD Weight	Contact Us
Replacement Part Number	PTH05060WAD-FT
