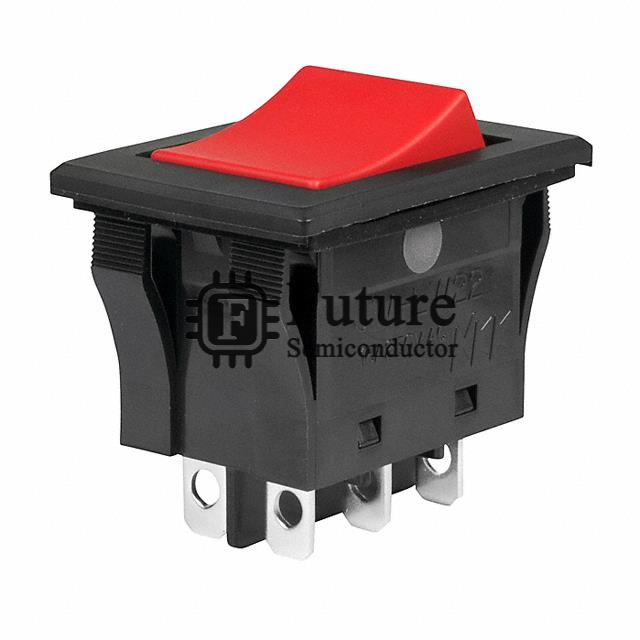

NKK Switches JWLW22RCA

Name: JWLW22RCA
Brand: NKK Switches
SKU: JWLW22RCA
Price: 10.36 USD
Availability: InStock
Rating: 5.0 (272 reviews)

MFG Part Number: JWLW22RCA

Available Quantity: 25460 Pieces

Reference Price: USD 10.36

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NKK Switches

Brief Description: JW SWITCH ROCKER DPDT 16A 125V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Rocker Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: JWLW22RCA.pdf

JWLW22RCA Specifications

Manufacturer Part Number	JWLW22RCA
Future Part Number	FT-JWLW22RCA
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	JW
JWLW22RCA Status (Lifecycle)	In Stock
Part Status	Active
Circuit	DPDT
Switch Function	On-On
Current Rating	16A (AC)
Voltage Rating - AC	125V
Voltage Rating - DC	-
Actuator Type	Concave (Curved)
Color - Actuator/Cap	Red
Actuator Marking	No Marking
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Mounting Type	Panel Mount, Snap-In
Termination Style	Solder, Quick Connect - 0.187" (4.7mm)
Ingress Protection	IP67 - Dust Tight, Waterproof
Features	Epoxy Sealed Terminals
Panel Cutout Dimensions	Rectangular - 30.70mm x 20.50mm
Operating Temperature	-25°C ~ 85°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
JWLW22RCA Weight	Contact Us
Replacement Part Number	JWLW22RCA-FT
