Home / Products / Switches / Tactile Switches / JB15HBPE-JB

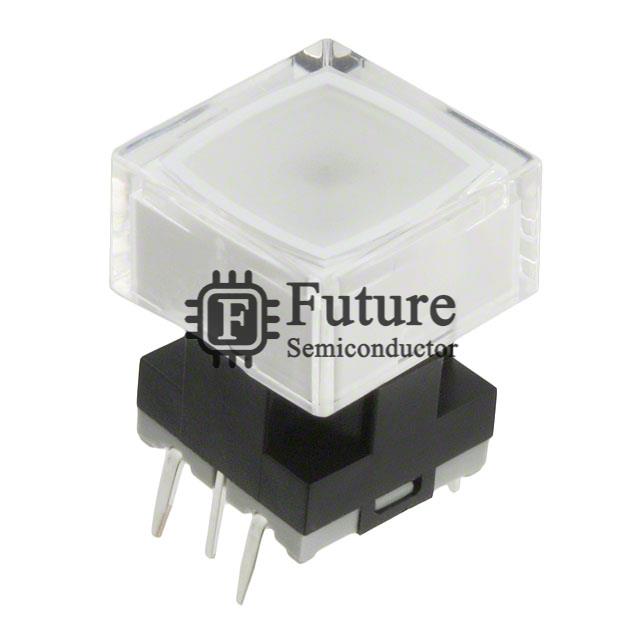

JB15HBPE-JB Image

NKK Switches JB15HBPE-JB

MFG Part Number
JB15HBPE-JB
Available Quantity
16590 Pieces
Reference Price
USD 3.936
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
NKK Switches
Brief Description
JB SWITCH TACT SPST-NO 0.125A 24V
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Tactile Switches
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
JB15HBPE-JB.pdf
JB15HBPE-JB Image

Request Quotation for JB15HBPE-JB

Company Name
Contact Person
Phone Number
Address
Email
Message

JB15HBPE-JB Specifications

Manufacturer Part Number JB15HBPE-JB
Future Part Number FT-JB15HBPE-JB
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series JB
JB15HBPE-JB Status (Lifecycle) In Stock
Part Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.125A @ 24VDC
Actuator Type Square Button
Mounting Type Through Hole
Actuator Height off PCB, Vertical 14.70mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 10.00mm x 10.00mm
Illumination Illuminated
Illumination Type, Color LED, Yellow
Illumination Voltage (Nominal) 2 VDC
Operating Force 265gf
Ingress Protection -
Features Process Sealed
Operating Temperature -25°C ~ 70°C
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
JB15HBPE-JB Weight Contact Us
Replacement Part Number JB15HBPE-JB-FT
