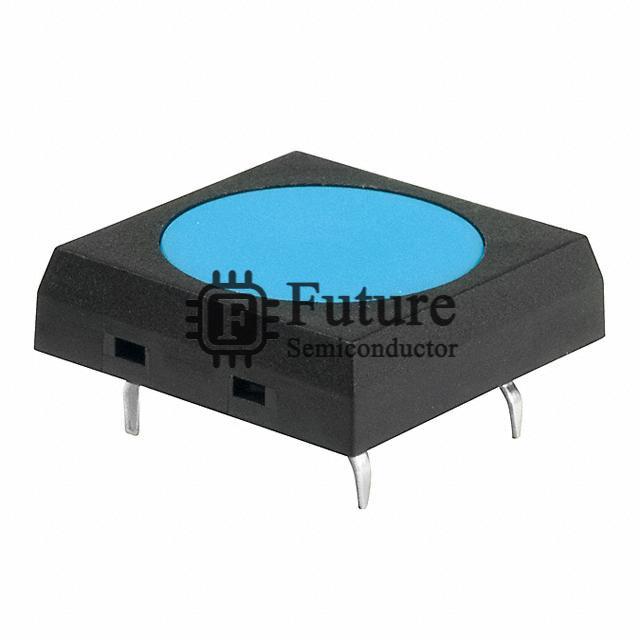

JF15SP2G Image

NKK Switches JF15SP2G

MFG Part Number
JF15SP2G
Available Quantity
50410 Pieces
Reference Price
USD 2.496
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
NKK Switches
Brief Description
JF SWITCH TACTILE SPST-NO 0.05A 24V
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Tactile Switches
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
JF15SP2G.pdf
JF15SP2G Image

Request Quotation for JF15SP2G

Company Name
Contact Person
Phone Number
Address
Email
Message

JF15SP2G Specifications

Manufacturer Part Number JF15SP2G
Future Part Number FT-JF15SP2G
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series JF
JF15SP2G Status (Lifecycle) In Stock
Part Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Round Button
Mounting Type Through Hole
Actuator Height off PCB, Vertical 5.08mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 17.70mm x 17.70mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 300gf
Ingress Protection -
Features Process Sealed
Operating Temperature -25°C ~ 85°C
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
JF15SP2G Weight Contact Us
Replacement Part Number JF15SP2G-FT
