Analog Devices Inc. HMC514LP5E

Name: HMC514LP5E
Brand: Analog Devices Inc.
SKU: HMC514LP5E
Price: 30.912 USD
Availability: InStock
Rating: 4.5 (204 reviews)

MFG Part Number: HMC514LP5E

Available Quantity: 42560 Pieces

Reference Price: USD 30.912

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Analog Devices Inc.

Brief Description: - VCO 5.7975/11.595GHZ 2-13V 5X5MM

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: VCOs (Voltage Controlled Oscillators)

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: HMC514LP5E.pdf

Request Quotation for HMC514LP5E

Company Name

Contact Person

Phone Number

Address

Email

Message

HMC514LP5E Specifications

Manufacturer Part Number	HMC514LP5E
Future Part Number	FT-HMC514LP5E
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
HMC514LP5E Status (Lifecycle)	In Stock
Part Status	Active
Frequency Range	5.585 ~ 6.01GHz, 11.17 ~ 12.02GHz
Frequency - Center	5.7975GHz, 11.595GHz
Voltage - Supply	3V
Tuning Voltage (VDC)	2V ~ 13V
2nd Harmonic, Typ (dBc)	17
Icc Max	290mA
Pushing (MHz/V)	18
Power (dBm)	-7±3, 8±3, 7.5±2.5
Phase Noise Typ (dBc/Hz)	-110
Operating Temperature	-40°C ~ 85°C

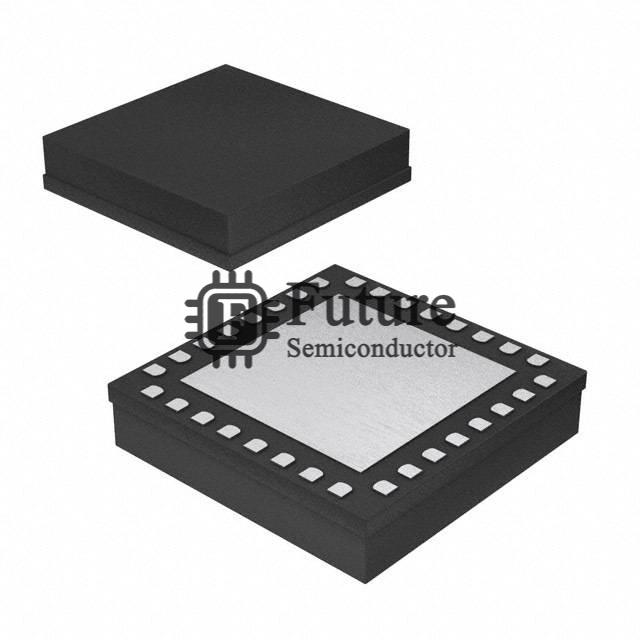

Package / Case	32-VFQFN Exposed Pad, CSP
Size / Dimension	0.197" L x 0.197" W (5.00mm x 5.00mm)
Height	0.039" (1.00mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
HMC514LP5E Weight	Contact Us
Replacement Part Number	HMC514LP5E-FT
