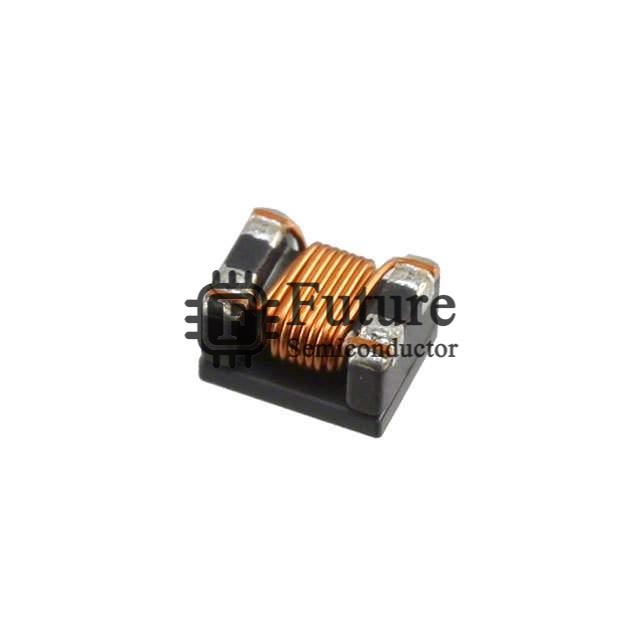

TDK Corporation ACP3225-501-2P-TL000

Name: ACP3225-501-2P-TL000
Brand: TDK Corporation
SKU: ACP3225-501-2P-TL000
Price: 0.38144 USD
Availability: InStock
Rating: 4.8 (678 reviews)

MFG Part Number: ACP3225-501-2P-TL000

Available Quantity: 11750 Pieces

Reference Price: USD 0.38144

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TDK Corporation

Brief Description: ACP CMC 2A 2LN 500 OHM SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: ACP3225-501-2P-TL000.pdf

Request Quotation for ACP3225-501-2P-TL000

Company Name

Contact Person

Phone Number

Address

Email

Message

ACP3225-501-2P-TL000 Specifications

Manufacturer Part Number	ACP3225-501-2P-TL000
Future Part Number	FT-ACP3225-501-2P-TL000
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	ACP
ACP3225-501-2P-TL000 Status (Lifecycle)	In Stock
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Impedance @ Frequency	500 Ohms @ 100MHz
Inductance @ Frequency	-
Current Rating (Max)	2A
DC Resistance (DCR) (Max)	40 mOhm
Voltage Rating - DC	60V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 85°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max)	0.079" (2.00mm)
Package / Case	Horizontal, 4 PC Pad
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
ACP3225-501-2P-TL000 Weight	Contact Us
Replacement Part Number	ACP3225-501-2P-TL000-FT
