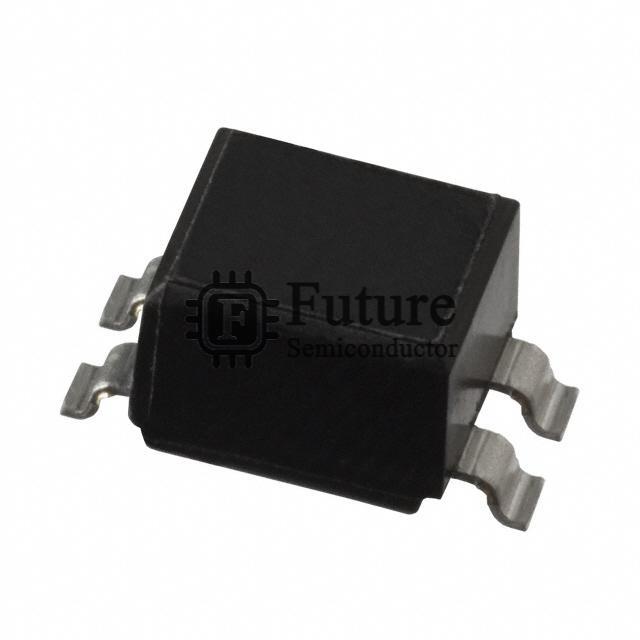

TDK Corporation ZJYS51R5-2PT-01

Name: ZJYS51R5-2PT-01
Brand: TDK Corporation
SKU: ZJYS51R5-2PT-01
Availability: InStock
Rating: 4.6 (324 reviews)

MFG Part Number: ZJYS51R5-2PT-01

Available Quantity: 52680 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TDK Corporation

Brief Description: ZJYS51 CMC 2A 2LN 200 OHM SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: ZJYS51R5-2PT-01.pdf

Request Quotation for ZJYS51R5-2PT-01

Company Name

Contact Person

Phone Number

Address

Email

Message

ZJYS51R5-2PT-01 Specifications

Manufacturer Part Number	ZJYS51R5-2PT-01
Future Part Number	FT-ZJYS51R5-2PT-01
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	ZJYS51
ZJYS51R5-2PT-01 Status (Lifecycle)	In Stock
Part Status	Obsolete
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	200 Ohms @ 100MHz
Inductance @ Frequency	-
Current Rating (Max)	2A
DC Resistance (DCR) (Max)	120 mOhm
Voltage Rating - DC	50V
Voltage Rating - AC	-
Operating Temperature	-25°C ~ 85°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.270" L x 0.217" W (6.86mm x 5.50mm)
Height (Max)	0.200" (5.08mm)
Package / Case	Horizontal, 4 Gull Wing
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
ZJYS51R5-2PT-01 Weight	Contact Us
Replacement Part Number	ZJYS51R5-2PT-01-FT
