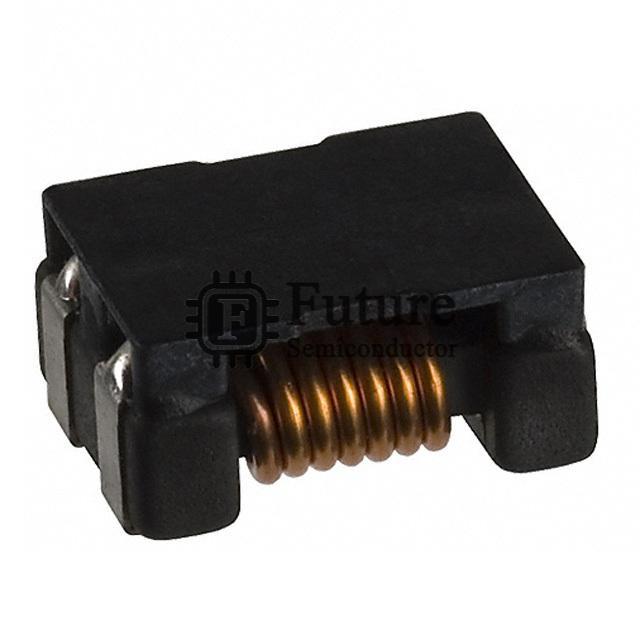

TDK Corporation ACM90V-701-2PL-TL00

Name: ACM90V-701-2PL-TL00
Brand: TDK Corporation
SKU: ACM90V-701-2PL-TL00
Price: 0.8228 USD
Availability: InStock
Rating: 4.9 (39 reviews)

MFG Part Number: ACM90V-701-2PL-TL00

Available Quantity: 53280 Pieces

Reference Price: USD 0.8228

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TDK Corporation

Brief Description: ACM-V CMC 5A 2LN 700 OHM SMD AEC-Q200

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: ACM90V-701-2PL-TL00.pdf

Request Quotation for ACM90V-701-2PL-TL00

Company Name

Contact Person

Phone Number

Address

Email

Message

ACM90V-701-2PL-TL00 Specifications

Manufacturer Part Number	ACM90V-701-2PL-TL00
Future Part Number	FT-ACM90V-701-2PL-TL00
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	ACM-V
ACM90V-701-2PL-TL00 Status (Lifecycle)	In Stock
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Impedance @ Frequency	700 Ohms @ 100MHz
Inductance @ Frequency	-
Current Rating (Max)	5A
DC Resistance (DCR) (Max)	10 mOhm
Voltage Rating - DC	80V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 125°C
Ratings	AEC-Q200
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.354" L x 0.276" W (9.00mm x 7.00mm)
Height (Max)	0.177" (4.50mm)
Package / Case	Horizontal, 4 J-Lead
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
ACM90V-701-2PL-TL00 Weight	Contact Us
Replacement Part Number	ACM90V-701-2PL-TL00-FT
