Home / Products / Filters / Common Mode Chokes / ACM2012H-900-2P-T05

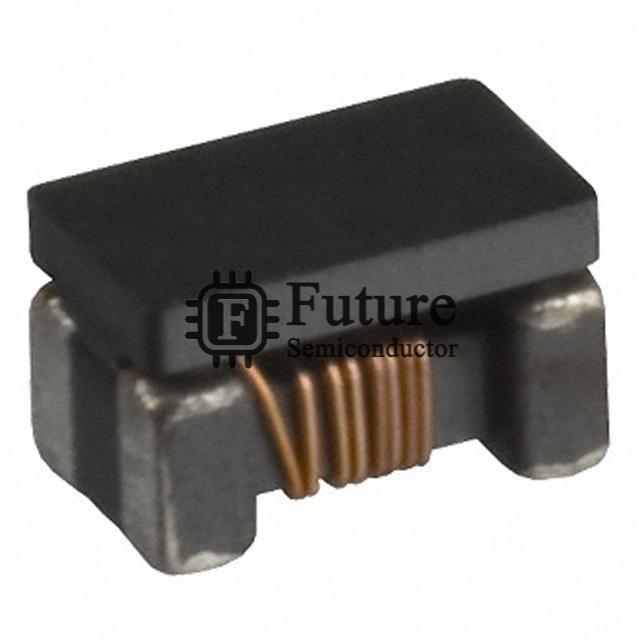

ACM2012H-900-2P-T05 Image

TDK Corporation ACM2012H-900-2P-T05

MFG Part Number
ACM2012H-900-2P-T05
Available Quantity
94900 Pieces
Reference Price
USD 0.188224
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
TDK Corporation
Brief Description
ACM-H CMC 300MA 2LN 90 OHM SMD
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Common Mode Chokes
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
ACM2012H-900-2P-T05.pdf
ACM2012H-900-2P-T05 Image

Request Quotation for ACM2012H-900-2P-T05

Company Name
Contact Person
Phone Number
Address
Email
Message

ACM2012H-900-2P-T05 Specifications

Manufacturer Part Number ACM2012H-900-2P-T05
Future Part Number FT-ACM2012H-900-2P-T05
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series ACM-H
ACM2012H-900-2P-T05 Status (Lifecycle) In Stock
Part Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 90 Ohms @ 100MHz
Inductance @ Frequency -
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 300 mOhm
Voltage Rating - DC 20V
Voltage Rating - AC -
Operating Temperature -40°C ~ 85°C
Ratings -
Approvals -
Features -
Mounting Type Surface Mount
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) 0.051" (1.30mm)
Package / Case Horizontal, 4 PC Pad
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
ACM2012H-900-2P-T05 Weight Contact Us
Replacement Part Number ACM2012H-900-2P-T05-FT
