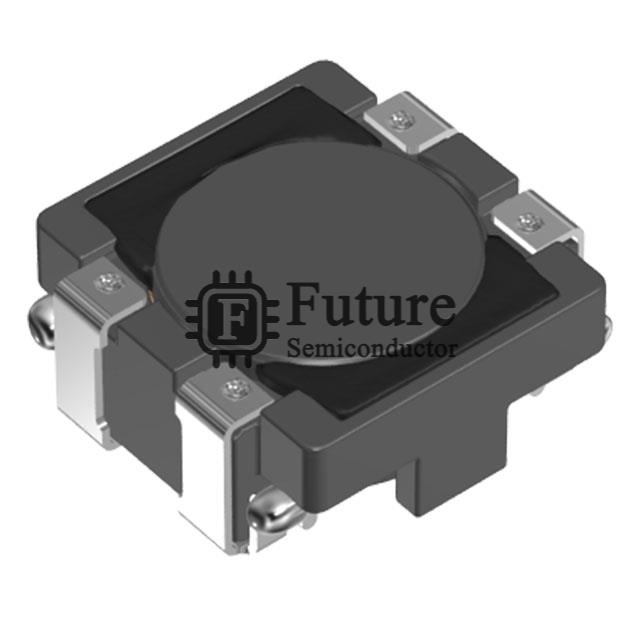

TDK Corporation ACM4520V-901-2P-T00

Name: ACM4520V-901-2P-T00
Brand: TDK Corporation
SKU: ACM4520V-901-2P-T00
Price: 0.544 USD
Availability: InStock
Rating: 4.5 (299 reviews)

MFG Part Number: ACM4520V-901-2P-T00

Available Quantity: 46650 Pieces

Reference Price: USD 0.544

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TDK Corporation

Brief Description: ACM-V CMC 1.2A 2LN 900OHM SMD AEC-Q200

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: ACM4520V-901-2P-T00.pdf

Request Quotation for ACM4520V-901-2P-T00

Company Name

Contact Person

Phone Number

Address

Email

Message

ACM4520V-901-2P-T00 Specifications

Manufacturer Part Number	ACM4520V-901-2P-T00
Future Part Number	FT-ACM4520V-901-2P-T00
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	ACM-V
ACM4520V-901-2P-T00 Status (Lifecycle)	In Stock
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Impedance @ Frequency	900 Ohms @ 100MHz
Inductance @ Frequency	-
Current Rating (Max)	1.2A
DC Resistance (DCR) (Max)	60 mOhm
Voltage Rating - DC	50V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 125°C
Ratings	AEC-Q200
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.185" L x 0.177" W (4.70mm x 4.50mm)
Height (Max)	0.079" (2.00mm)
Package / Case	Horizontal, 4 PC Pad
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
ACM4520V-901-2P-T00 Weight	Contact Us
Replacement Part Number	ACM4520V-901-2P-T00-FT
