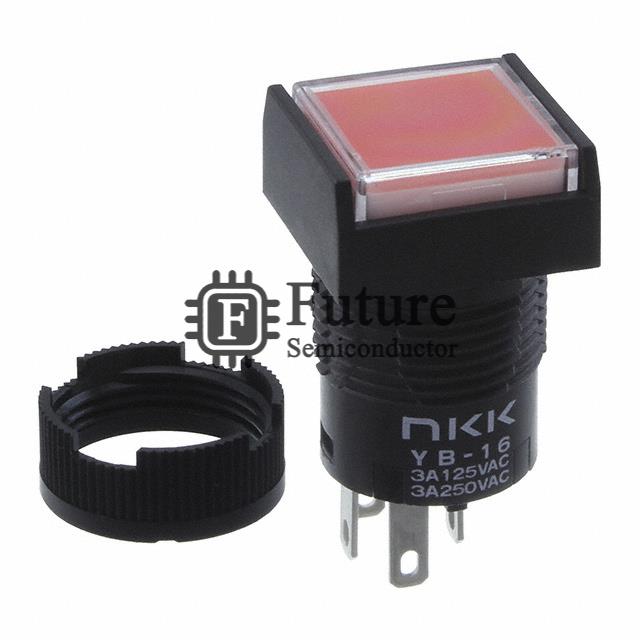

NKK Switches YB16SKW01-5C-JC

Name: YB16SKW01-5C-JC
Brand: NKK Switches
SKU: YB16SKW01-5C-JC
Price: 11.936 USD
Availability: InStock
Rating: 4.7 (651 reviews)

MFG Part Number: YB16SKW01-5C-JC

Available Quantity: 49100 Pieces

Reference Price: USD 11.936

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NKK Switches

Brief Description: YB SWITCH PUSHBUTTON SPDT 3A 125V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Pushbutton Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: YB16SKW01-5C-JC.pdf

Request Quotation for YB16SKW01-5C-JC

Company Name

Contact Person

Phone Number

Address

Email

Message

YB16SKW01-5C-JC Specifications

Manufacturer Part Number	YB16SKW01-5C-JC
Future Part Number	FT-YB16SKW01-5C-JC
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	YB
YB16SKW01-5C-JC Status (Lifecycle)	In Stock
Part Status	Active
Type	Standard, Illuminated
Circuit	SPDT
Switch Function	On-On
Current Rating	3A (AC/DC)
Voltage Rating - AC	125V
Voltage Rating - DC	30V
Actuator Type	Square, Button
Color - Actuator/Cap	Clear (Red Filter/Diffuser)
Illumination Type, Color	LED, Red
Illumination Voltage (Nominal)	1.9 VDC
Mounting Type	Panel Mount, Front
Termination Style	Solder, Quick Connect - 0.110" (2.8mm)
Ingress Protection	-
Features	Epoxy Sealed Terminals
Panel Cutout Dimensions	Circular - 16.00mm Dia
Operating Temperature	-25°C ~ 50°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
YB16SKW01-5C-JC Weight	Contact Us
Replacement Part Number	YB16SKW01-5C-JC-FT
