Home / Products / Inductors, Coils, Chokes / Wireless Charging Coils / WT-505060-20K2-A10-G

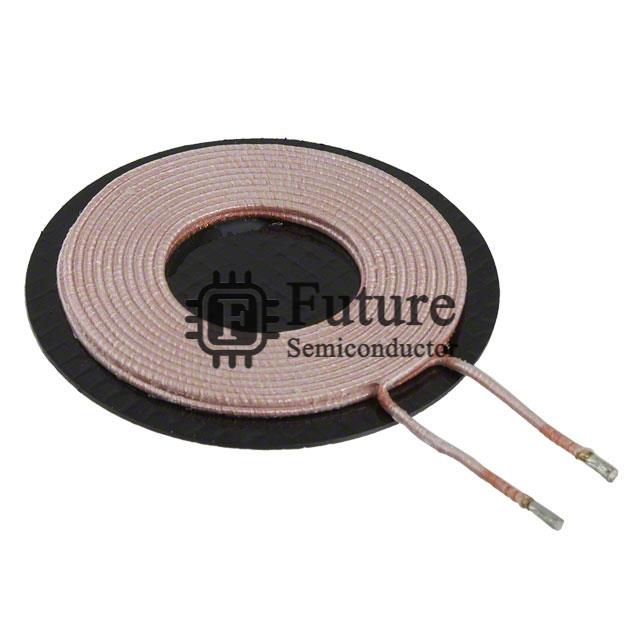

WT-505060-20K2-A10-G Image

TDK Corporation WT-505060-20K2-A10-G

MFG Part Number
WT-505060-20K2-A10-G
Available Quantity
22760 Pieces
Reference Price
USD 10.504
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
TDK Corporation
Brief Description
WT TRANSMITTER 1 COIL 2 LAYER 24UH
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Wireless Charging Coils
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
WT-505060-20K2-A10-G.pdf
WT-505060-20K2-A10-G Image

Request Quotation for WT-505060-20K2-A10-G

Company Name
Contact Person
Phone Number
Address
Email
Message

WT-505060-20K2-A10-G Specifications

Manufacturer Part Number WT-505060-20K2-A10-G
Future Part Number FT-WT-505060-20K2-A10-G
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series WT
WT-505060-20K2-A10-G Status (Lifecycle) In Stock
Part Status Active
Function Transmitter
Type 1 Coil, 2 Layer
Inductance 24µH
Tolerance ±10%
DC Resistance (DCR) 100 mOhm Max
Q @ Freq 80 @ 100kHz
Current Rating -
Current - Saturation -
Frequency - Self Resonant -
Operating Temperature -30°C ~ 70°C
Size / Dimension 1.97" Dia x 0.13" H (50.0mm x 3.4mm)
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
WT-505060-20K2-A10-G Weight Contact Us
Replacement Part Number WT-505060-20K2-A10-G-FT
