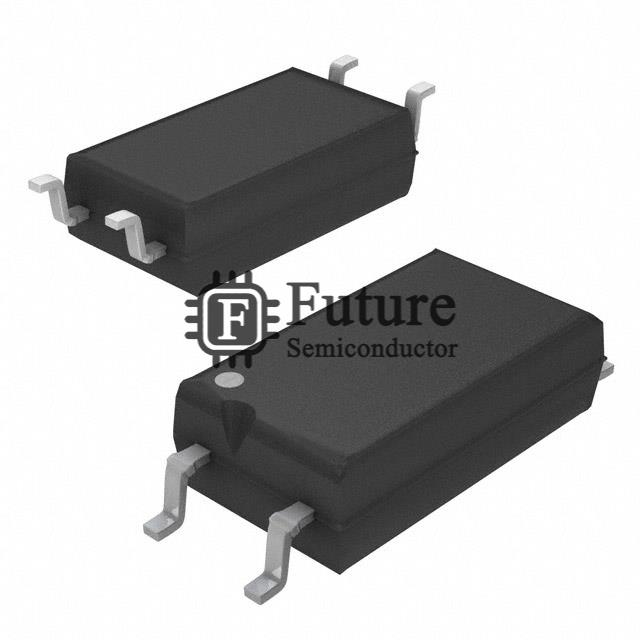

Vishay Semiconductor Opto Division VOL617A-8X001T
- MFG Part Number
- VOL617A-8X001T
- Available Quantity
- 66270 Pieces
- Reference Price
- USD 0.168
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Vishay Semiconductor Opto Division
- Brief Description
- - OPTOISOLATOR 5KV TRANS
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Optoisolators - Transistor, Photovoltaic Output
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- VOL617A-8X001T.pdf
VOL617A-8X001T Specifications
| Manufacturer Part Number | VOL617A-8X001T |
|---|---|
| Future Part Number | FT-VOL617A-8X001T |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| VOL617A-8X001T Status (Lifecycle) | In Stock |
| Part Status | Active |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 130% @ 5mA |
| Current Transfer Ratio (Max) | 260% @ 5mA |
| Turn On / Turn Off Time (Typ) | 6µs, 5.5µs |
| Rise / Fall Time (Typ) | 3.5µs, 5µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.16V |
| Current - DC Forward (If) (Max) | 60mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD |
| Supplier Device Package | 4-LSOP (2.54mm) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| VOL617A-8X001T Weight | Contact Us |
| Replacement Part Number | VOL617A-8X001T-FT |
