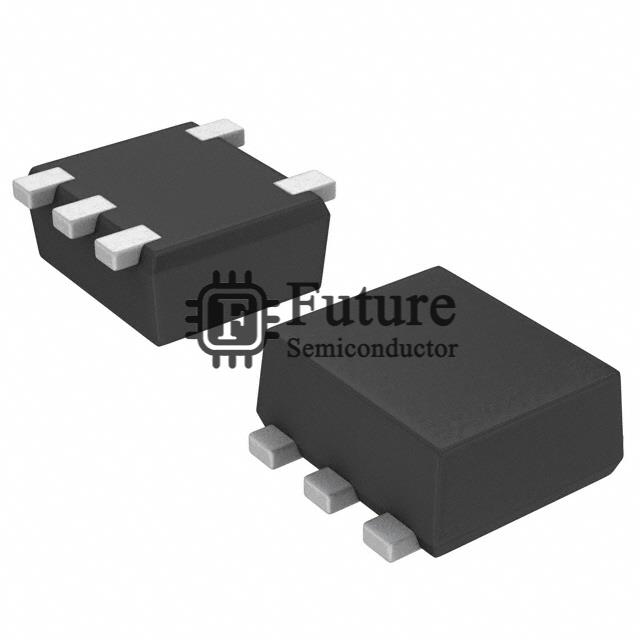

Rohm Semiconductor US5U29TR
- MFG Part Number
- US5U29TR
- Available Quantity
- 22950 Pieces
- Reference Price
- USD 0.18444
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Rohm Semiconductor
- Brief Description
- - MOSFET P-CH 20V 1A TUMT5
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Transistors - FETs, MOSFETs - Single
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- US5U29TR.pdf
US5U29TR Specifications
| Manufacturer Part Number | US5U29TR |
|---|---|
| Future Part Number | FT-US5U29TR |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| US5U29TR Status (Lifecycle) | In Stock |
| Part Status | Not For New Designs |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 1A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 390 mOhm @ 1A, 4.5V |
| Vgs(th) (Max) @ Id | 2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 2.1nC @ 5V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 150pF @ 10V |
| FET Feature | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 1W (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TUMT5 |
| Package / Case | 6-SMD (5 Leads), Flat Lead |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| US5U29TR Weight | Contact Us |
| Replacement Part Number | US5U29TR-FT |
