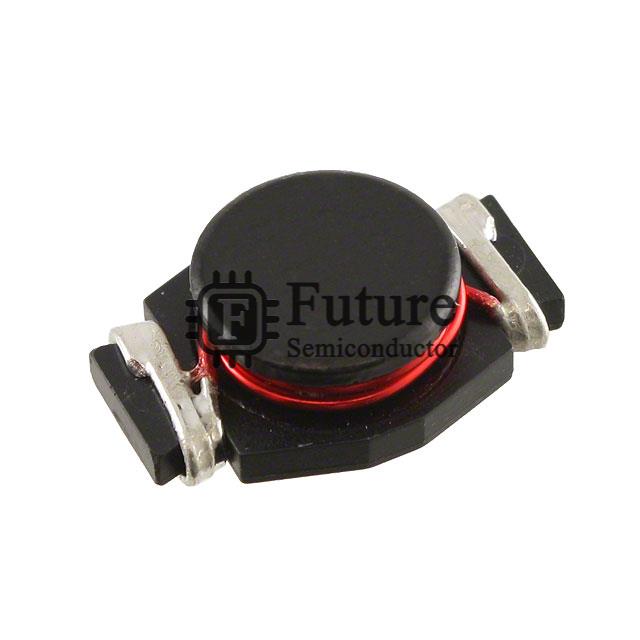

Manufacturer Part Number | UP4B-100-R |
---|---|
Future Part Number | FT-UP4B-100-R |
SPQ / MOQ | Contact Us |
Packing Material | Reel/Tray/Tube/Others |
Series | UNI-PAC™ |
UP4B-100-R Status (Lifecycle) | In Stock |
Part Status | Active |
Type | Wirewound |
Material - Core | Ferrite |
Inductance | 10µH |
Tolerance | ±20% |
Current Rating | 6.8A |
Current - Saturation | 11.5A |
Shielding | Unshielded |
DC Resistance (DCR) | 15 mOhm Max |
Q @ Freq | - |
Frequency - Self Resonant | - |
Ratings | - |
Operating Temperature | -40°C ~ 85°C |
Inductance Frequency - Test | 100kHz |
Features | - |
Mounting Type | Surface Mount |
Package / Case | Nonstandard |
Supplier Device Package | - |
Size / Dimension | 0.870" L x 0.591" W (22.10mm x 15.00mm) |
Height - Seated (Max) | 0.310" (7.87mm) |
Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
UP4B-100-R Weight | Contact Us |
Replacement Part Number | UP4B-100-R-FT |
