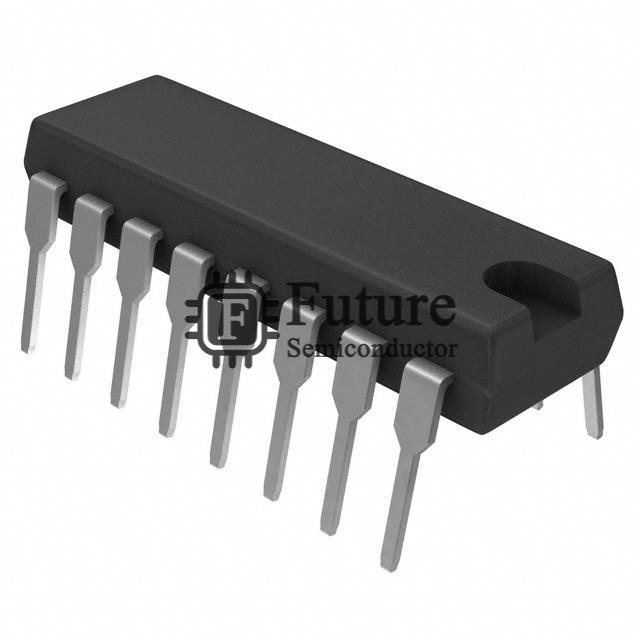

Toshiba Semiconductor and Storage ULN2004APG,C,N

Name: ULN2004APG,C,N
Brand: Toshiba Semiconductor and Storage
SKU: ULN2004APG,C,N
Availability: InStock
Rating: 5.0 (526 reviews)

MFG Part Number: ULN2004APG,C,N

Available Quantity: 64230 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Toshiba Semiconductor and Storage

Brief Description: - IC PWR RELAY 7NPN 11 16DIP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - Bipolar (BJT) - Arrays

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: ULN2004APG,C,N.pdf

Request Quotation for ULN2004APG,C,N

Company Name

Contact Person

Phone Number

Address

Email

Message

ULN2004APG,C,N Specifications

Manufacturer Part Number	ULN2004APG,C,N
Future Part Number	FT-ULN2004APG,C,N
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
ULN2004APG,C,N Status (Lifecycle)	In Stock
Part Status	Obsolete
Transistor Type	7 NPN Darlington
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	1.6V @ 500µA, 350mA
Current - Collector Cutoff (Max)	50µA
DC Current Gain (hFE) (Min) @ Ic, Vce	1000 @ 350mA, 2V
Power - Max	1.47W
Frequency - Transition	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Through Hole
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-DIP
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
ULN2004APG,C,N Weight	Contact Us
Replacement Part Number	ULN2004APG,C,N-FT
