Home / Products / Capacitors / Aluminum Electrolytic Capacitors / UHV1E680MDD1TD

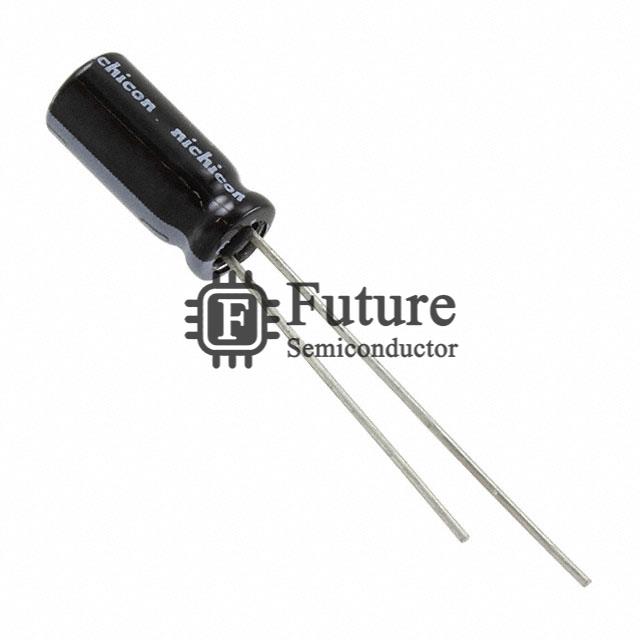

Nichicon UHV1E680MDD1TD
- MFG Part Number
- UHV1E680MDD1TD
- Available Quantity
- 64180 Pieces
- Reference Price
- USD 0.0654
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Nichicon
- Brief Description
- UHV Capacitors Aluminum 68UF 20 25V RADIAL
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Aluminum Electrolytic Capacitors
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- UHV1E680MDD1TD.pdf
UHV1E680MDD1TD Specifications
| Manufacturer Part Number | UHV1E680MDD1TD |
|---|---|
| Future Part Number | FT-UHV1E680MDD1TD |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | UHV |
| UHV1E680MDD1TD Status (Lifecycle) | In Stock |
| Part Status | Active |
| Capacitance | 68µF |
| Tolerance | ±20% |
| Voltage - Rated | 25V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 144mA @ 120Hz |
| Ripple Current @ High Frequency | 360mA @ 100kHz |
| Impedance | 230 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| UHV1E680MDD1TD Weight | Contact Us |
| Replacement Part Number | UHV1E680MDD1TD-FT |
