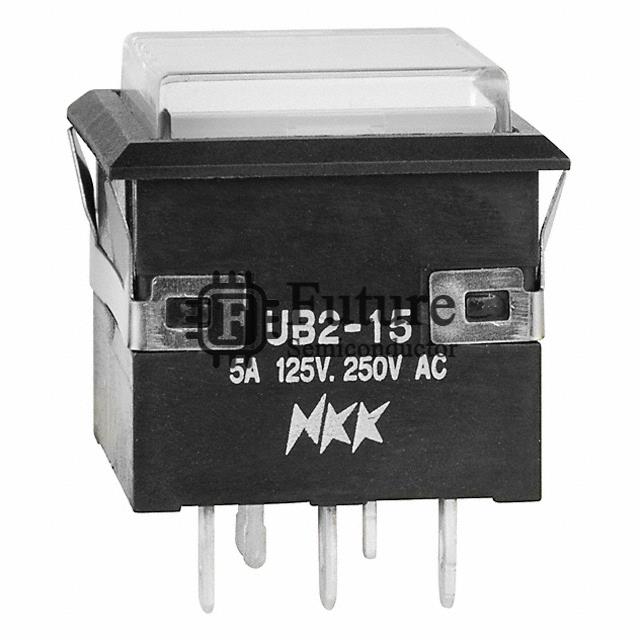

NKK Switches UB215KKW01CF-3JB

Name: UB215KKW01CF-3JB
Brand: NKK Switches
SKU: UB215KKW01CF-3JB
Availability: InStock
Rating: 4.6 (117 reviews)

MFG Part Number: UB215KKW01CF-3JB

Available Quantity: 82230 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NKK Switches

Brief Description: UB2 SWITCH PUSHBUTTON SPDT 5A 125V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Pushbutton Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: UB215KKW01CF-3JB.pdf

Request Quotation for UB215KKW01CF-3JB

Company Name

Contact Person

Phone Number

Address

Email

Message

UB215KKW01CF-3JB Specifications

Manufacturer Part Number	UB215KKW01CF-3JB
Future Part Number	FT-UB215KKW01CF-3JB
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	UB2
UB215KKW01CF-3JB Status (Lifecycle)	In Stock
Part Status	Obsolete
Type	Standard, Illuminated
Circuit	SPDT
Switch Function	On-Mom
Current Rating	5A (AC/DC)
Voltage Rating - AC	125V
Voltage Rating - DC	30V
Actuator Type	Square, Button
Color - Actuator/Cap	Clear (White Filter/Diffuser)
Illumination Type, Color	LED, Red/Green
Illumination Voltage (Nominal)	2.1, 3.5 VDC
Mounting Type	Panel Mount, Snap-In
Termination Style	Solder Lug
Ingress Protection	-
Features	Epoxy Sealed Terminals
Panel Cutout Dimensions	Square - 17.40mm²
Operating Temperature	-25°C ~ 50°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
UB215KKW01CF-3JB Weight	Contact Us
Replacement Part Number	UB215KKW01CF-3JB-FT
