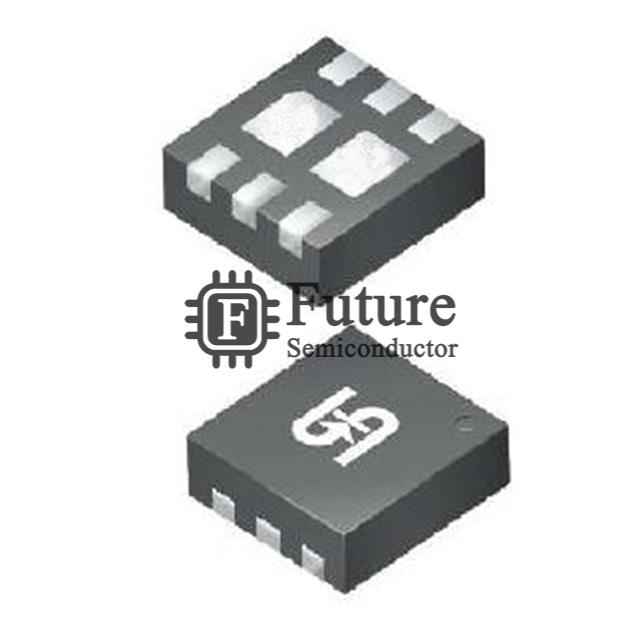

Taiwan Semiconductor Corporation TSM500P02DCQ RFG

Name: TSM500P02DCQ RFG
Brand: Taiwan Semiconductor Corporation
SKU: TSM500P02DCQ RFG
Price: 0.129832 USD
Availability: InStock
Rating: 4.7 (143 reviews)

MFG Part Number: TSM500P02DCQ RFG

Available Quantity: 71350 Pieces

Reference Price: USD 0.129832

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Taiwan Semiconductor Corporation

Brief Description: - MOSFET 2 P-CH 20V 4.7A 6TDFN

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Arrays

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: TSM500P02DCQ RFG.pdf

Request Quotation for TSM500P02DCQ RFG

Company Name

Contact Person

Phone Number

Address

Email

Message

TSM500P02DCQ RFG Specifications

Manufacturer Part Number	TSM500P02DCQ RFG
Future Part Number	FT-TSM500P02DCQ RFG
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
TSM500P02DCQ RFG Status (Lifecycle)	In Stock
Part Status	Active
FET Type	2 P-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4.7A (Tc)
Rds On (Max) @ Id, Vgs	50 mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	800mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1230pF @ 10V
Power - Max	620mW
Operating Temperature	-50°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad
Supplier Device Package	6-TDFN (2x2)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
TSM500P02DCQ RFG Weight	Contact Us
Replacement Part Number	TSM500P02DCQ RFG-FT
