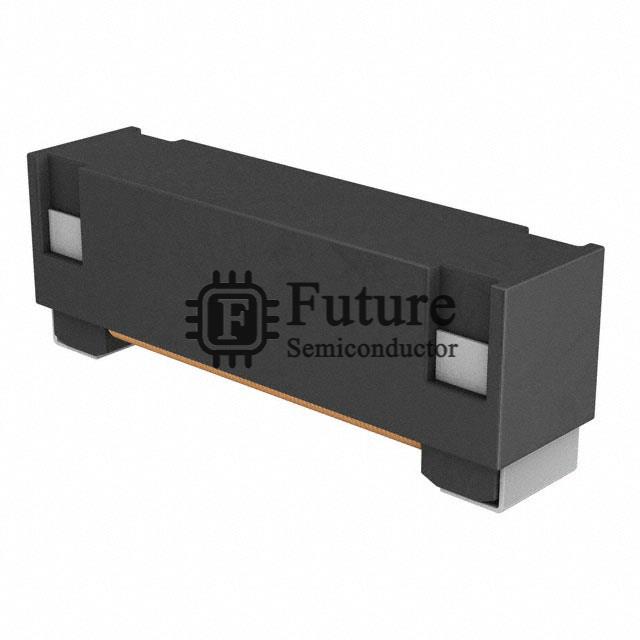

TDK Corporation TPL802727-452H

Name: TPL802727-452H
Brand: TDK Corporation
SKU: TPL802727-452H
Price: 0.431024 USD
Availability: InStock
Rating: 4.8 (409 reviews)

MFG Part Number: TPL802727-452H

Available Quantity: 80840 Pieces

Reference Price: USD 0.431024

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TDK Corporation

Brief Description: TPL FIXED Inductors 4.5MH 80 OHM SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: TPL802727-452H.pdf

Request Quotation for TPL802727-452H

Company Name

Contact Person

Phone Number

Address

Email

Message

TPL802727-452H Specifications

Manufacturer Part Number	TPL802727-452H
Future Part Number	FT-TPL802727-452H
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	TPL
TPL802727-452H Status (Lifecycle)	In Stock
Part Status	Active
Type	-
Material - Core	-
Inductance	4.5mH
Tolerance	±3%
Current Rating	-
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	80 Ohm Max
Q @ Freq	30 @ 125kHz
Frequency - Self Resonant	-
Ratings	AEC-Q200
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	125kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.309" L x 0.106" W (7.85mm x 2.70mm)
Height - Seated (Max)	0.114" (2.90mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
TPL802727-452H Weight	Contact Us
Replacement Part Number	TPL802727-452H-FT
