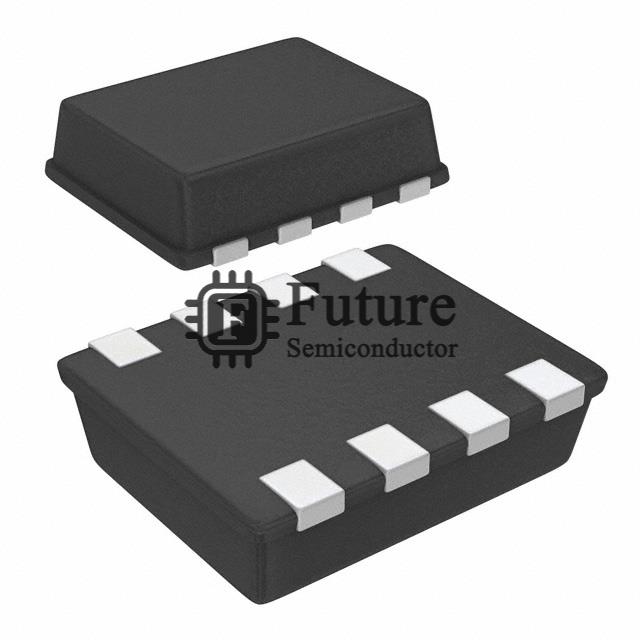

Toshiba Semiconductor and Storage TPCP8005-H(TE85L,F

Name: TPCP8005-H(TE85L,F
Brand: Toshiba Semiconductor and Storage
SKU: TPCP8005-H(TE85L,F
Availability: InStock
Rating: 4.9 (747 reviews)

MFG Part Number: TPCP8005-H(TE85L,F

Available Quantity: 87380 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Toshiba Semiconductor and Storage

Brief Description: U-MOSV-H MOSFET N-CH 30V 11A PS-8

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: TPCP8005-H(TE85L,F.pdf

TPCP8005-H(TE85L,F Specifications

Manufacturer Part Number	TPCP8005-H(TE85L,F
Future Part Number	FT-TPCP8005-H(TE85L,F
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	U-MOSV-H
TPCP8005-H(TE85L,F Status (Lifecycle)	In Stock
Part Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	11A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	12.9 mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	20nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2150pF @ 10V
FET Feature	-
Power Dissipation (Max)	840mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PS-8 (2.9x2.4)
Package / Case	8-SMD, Flat Lead
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
TPCP8005-H(TE85L,F Weight	Contact Us
Replacement Part Number	TPCP8005-H(TE85L,F-FT
