Home / Products / Filters / Common Mode Chokes / TLF14CBH1021R5K1

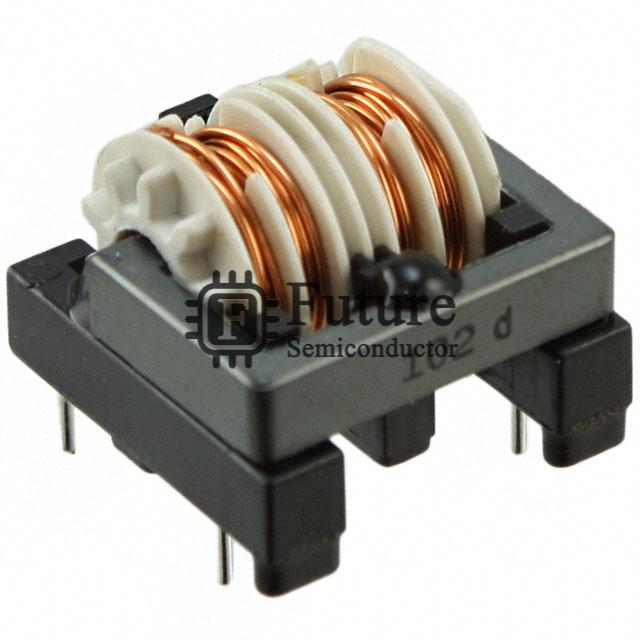

TLF14CBH1021R5K1 Image

Taiyo Yuden TLF14CBH1021R5K1

MFG Part Number
TLF14CBH1021R5K1
Available Quantity
71040 Pieces
Reference Price
USD 0
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
Taiyo Yuden
Brief Description
TLF14 CMC 1MH 1.5A 2LN TH
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Common Mode Chokes
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
TLF14CBH1021R5K1.pdf
TLF14CBH1021R5K1 Image

Request Quotation for TLF14CBH1021R5K1

Company Name
Contact Person
Phone Number
Address
Email
Message

TLF14CBH1021R5K1 Specifications

Manufacturer Part Number TLF14CBH1021R5K1
Future Part Number FT-TLF14CBH1021R5K1
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series TLF14
TLF14CBH1021R5K1 Status (Lifecycle) In Stock
Part Status Obsolete
Filter Type Power Line
Number of Lines 2
Impedance @ Frequency -
Inductance @ Frequency 1mH @ 1kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 100 mOhm
Voltage Rating - DC -
Voltage Rating - AC 250V
Operating Temperature -25°C ~ 105°C
Ratings -
Approvals -
Features -
Mounting Type Through Hole
Size / Dimension 0.906" L x 0.866" W (23.00mm x 22.00mm)
Height (Max) 0.689" (17.50mm)
Package / Case Vertical, 4 PC Pin
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
TLF14CBH1021R5K1 Weight Contact Us
Replacement Part Number TLF14CBH1021R5K1-FT
