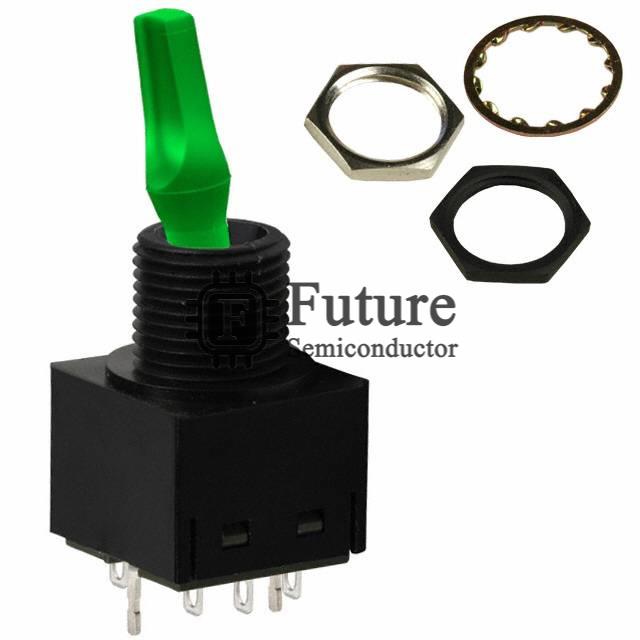

NKK Switches TL22DNAW016F

Name: TL22DNAW016F
Brand: NKK Switches
SKU: TL22DNAW016F
Price: 10.92 USD
Availability: InStock
Rating: 4.9 (459 reviews)

MFG Part Number: TL22DNAW016F

Available Quantity: 99290 Pieces

Reference Price: USD 10.92

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NKK Switches

Brief Description: TL SWITCH TOGGLE DPDT 6A 125V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Toggle Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: TL22DNAW016F.pdf

Request Quotation for TL22DNAW016F

Company Name

Contact Person

Phone Number

Address

Email

Message

TL22DNAW016F Specifications

Manufacturer Part Number	TL22DNAW016F
Future Part Number	FT-TL22DNAW016F
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	TL
TL22DNAW016F Status (Lifecycle)	In Stock
Part Status	Active
Circuit	DPDT
Switch Function	On-On
Current Rating	6A (AC/DC)
Voltage Rating - AC	125V
Voltage Rating - DC	12V
Actuator Type	Flatted
Actuator Length	17.50mm
Illumination	Illuminated
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	3.5 VDC
Mounting Type	Panel Mount
Termination Style	Solder Lug
Panel Cutout Dimensions	Circular - 12.50mm Dia
Bushing Thread	M12 x 1
Ingress Protection	IP65 - Dust Tight, Water Resistant
Features	Epoxy Sealed Terminals
Operating Temperature	-10°C ~ 55°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
TL22DNAW016F Weight	Contact Us
Replacement Part Number	TL22DNAW016F-FT
