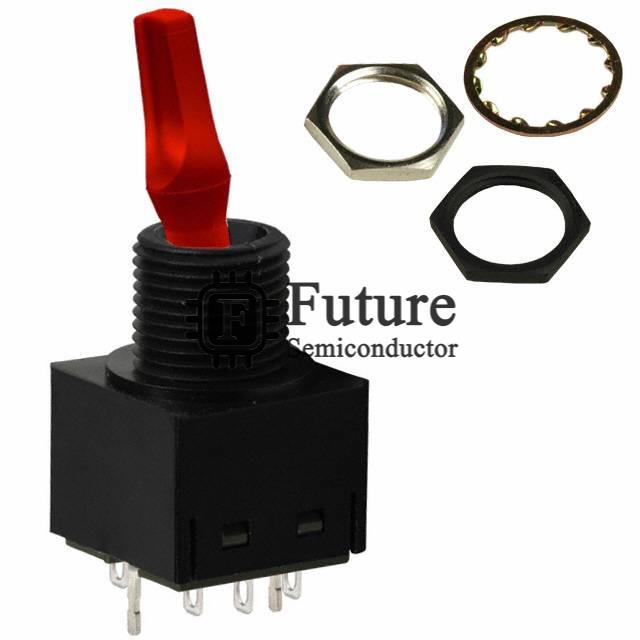

NKK Switches TL22DCAW015C

Name: TL22DCAW015C
Brand: NKK Switches
SKU: TL22DCAW015C
Price: 9.24 USD
Availability: InStock
Rating: 4.9 (42 reviews)

MFG Part Number: TL22DCAW015C

Available Quantity: 53100 Pieces

Reference Price: USD 9.24

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NKK Switches

Brief Description: TL SWITCH TOGGLE DPDT 6A 125V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Toggle Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: TL22DCAW015C.pdf

Request Quotation for TL22DCAW015C

Company Name

Contact Person

Phone Number

Address

Email

Message

TL22DCAW015C Specifications

Manufacturer Part Number	TL22DCAW015C
Future Part Number	FT-TL22DCAW015C
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	TL
TL22DCAW015C Status (Lifecycle)	In Stock
Part Status	Active
Circuit	DPDT
Switch Function	On-On
Current Rating	6A (AC/DC)
Voltage Rating - AC	125V
Voltage Rating - DC	12V
Actuator Type	Flatted
Actuator Length	17.50mm
Illumination	Illuminated
Illumination Type, Color	LED, Red
Illumination Voltage (Nominal)	2 VDC
Mounting Type	Panel Mount
Termination Style	Solder Lug
Panel Cutout Dimensions	Circular - 12.50mm Dia
Bushing Thread	M12 x 1
Ingress Protection	IP65 - Dust Tight, Water Resistant
Features	Epoxy Sealed Terminals
Operating Temperature	-10°C ~ 55°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
TL22DCAW015C Weight	Contact Us
Replacement Part Number	TL22DCAW015C-FT
