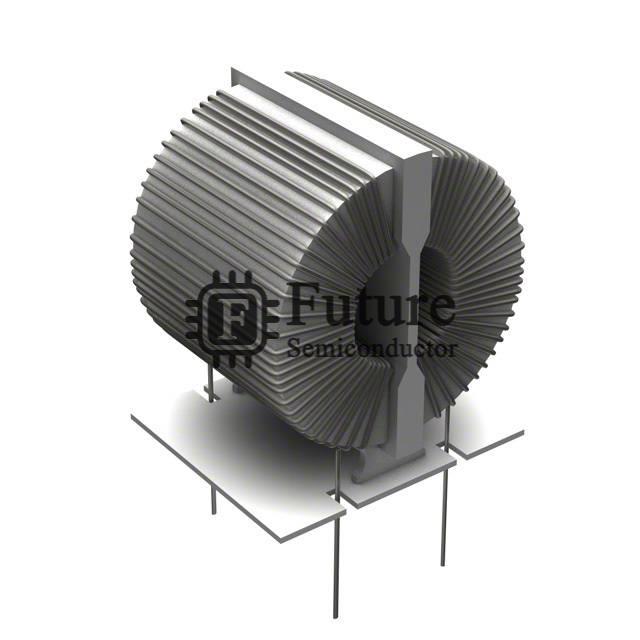

TDK Corporation TF2326VU-102Y5R0-01

Name: TF2326VU-102Y5R0-01
Brand: TDK Corporation
SKU: TF2326VU-102Y5R0-01
Availability: InStock
Rating: 4.6 (53 reviews)

MFG Part Number: TF2326VU-102Y5R0-01

Available Quantity: 78450 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: TDK Corporation

Brief Description: TF COMMON MODE CHOKE 5A 2LN TH

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Common Mode Chokes

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: TF2326VU-102Y5R0-01.pdf

Request Quotation for TF2326VU-102Y5R0-01

Company Name

Contact Person

Phone Number

Address

Email

Message

TF2326VU-102Y5R0-01 Specifications

Manufacturer Part Number	TF2326VU-102Y5R0-01
Future Part Number	FT-TF2326VU-102Y5R0-01
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	TF
TF2326VU-102Y5R0-01 Status (Lifecycle)	In Stock
Part Status	Obsolete
Filter Type	Power Line
Number of Lines	2
Impedance @ Frequency	-
Inductance @ Frequency	-
Current Rating (Max)	5A
DC Resistance (DCR) (Max)	50 mOhm
Voltage Rating - DC	-
Voltage Rating - AC	-
Operating Temperature	-20°C ~ 120°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	0.906" L x 0.787" W (23.00mm x 20.00mm)
Height (Max)	1.024" (26.00mm)
Package / Case	Vertical, 4 PC Pin
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
TF2326VU-102Y5R0-01 Weight	Contact Us
Replacement Part Number	TF2326VU-102Y5R0-01-FT
