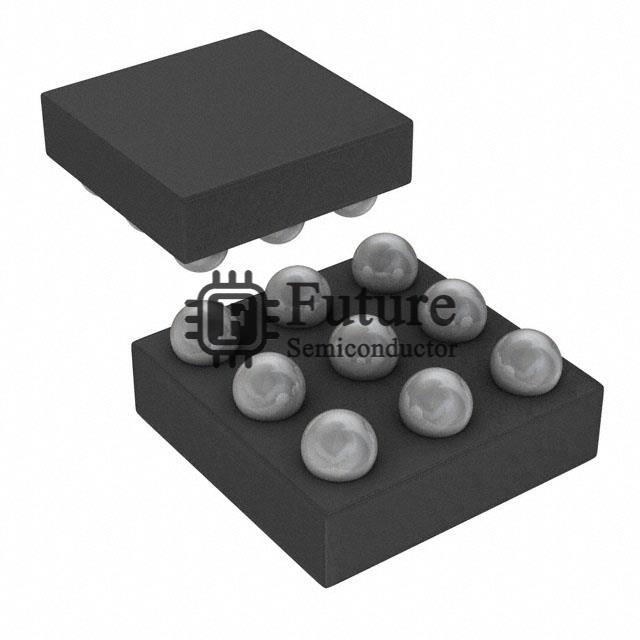

Toshiba Semiconductor and Storage TCK302G,LF

Name: TCK302G,LF
Brand: Toshiba Semiconductor and Storage
SKU: TCK302G,LF
Price: 0.36176 USD
Availability: InStock
Rating: 4.6 (702 reviews)

MFG Part Number: TCK302G,LF

Available Quantity: 82710 Pieces

Reference Price: USD 0.36176

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Toshiba Semiconductor and Storage

Brief Description: TCK30 IC POWER DIST LOAD SWITCH 9WCSP

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - Power Distribution Switches, Load Drivers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: TCK302G,LF.pdf

TCK302G,LF Specifications

Manufacturer Part Number	TCK302G,LF
Future Part Number	FT-TCK302G,LF
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	TCK30
TCK302G,LF Status (Lifecycle)	In Stock
Part Status	Active
Switch Type	General Purpose
Number of Outputs	1
Ratio - Input:Output	1:1
Output Configuration	High Side
Output Type	N-Channel
Interface	On/Off
Voltage - Load	2.3V ~ 28V
Voltage - Supply (Vcc/Vdd)	Not Required
Current - Output (Max)	3A
Rds On (Typ)	73 mOhm
Input Type	-
Features	Slew Rate Controlled, Status Flag
Fault Protection	Over Temperature, Over Voltage, Reverse Current, UVLO
Operating Temperature	-40°C ~ 85°C (TA)
Package / Case	9-UFBGA, CSPBGA
Supplier Device Package	9-WCSP (1.5x1.5)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
TCK302G,LF Weight	Contact Us
Replacement Part Number	TCK302G,LF-FT
