Home / Products / Integrated Circuits (ICs) / PMIC - Motor Drivers, Controllers / TB6569FG,8,EL

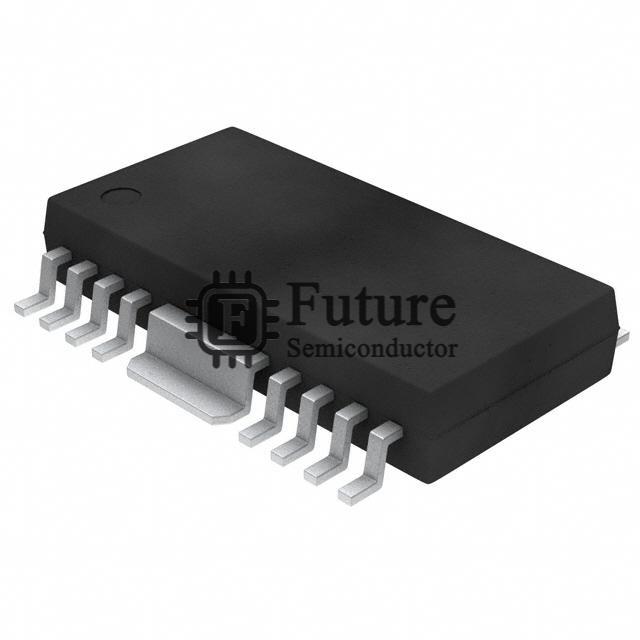

Toshiba Semiconductor and Storage TB6569FG,8,EL
- MFG Part Number
- TB6569FG,8,EL
- Available Quantity
- 22730 Pieces
- Reference Price
- USD 1.0556
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Toshiba Semiconductor and Storage
- Brief Description
- - IC MOTOR DRIVER 10V-45V 16HSOP
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- PMIC - Motor Drivers, Controllers
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- TB6569FG,8,EL.pdf
TB6569FG,8,EL Specifications
| Manufacturer Part Number | TB6569FG,8,EL |
|---|---|
| Future Part Number | FT-TB6569FG,8,EL |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| TB6569FG,8,EL Status (Lifecycle) | In Stock |
| Part Status | Active |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | Parallel, PWM |
| Technology | Bi-CMOS |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 1.5A |
| Voltage - Supply | 10V ~ 45V |
| Voltage - Load | 10V ~ 45V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-BSOP (0.252", 6.40mm Width) + 2 Heat Tabs |
| Supplier Device Package | 16-HSOP |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| TB6569FG,8,EL Weight | Contact Us |
| Replacement Part Number | TB6569FG,8,EL-FT |
