Home / Products / Circuit Protection / TVS - Diodes / SZESD7421N2T5G

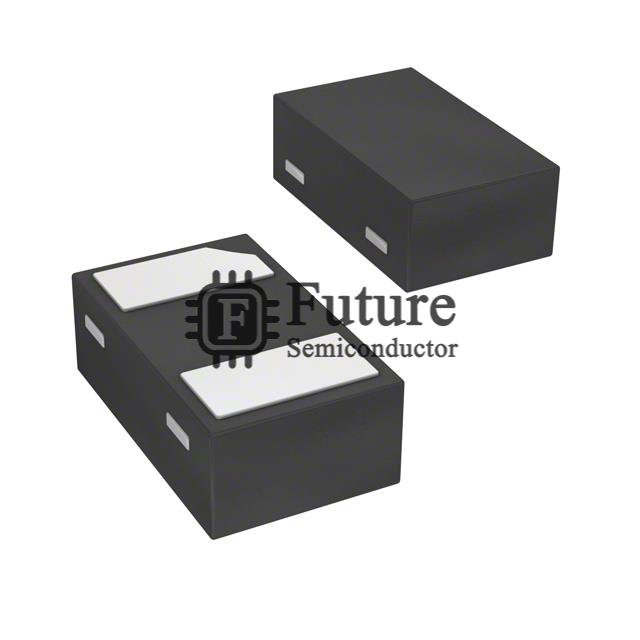

ON Semiconductor SZESD7421N2T5G
- MFG Part Number
- SZESD7421N2T5G
- Available Quantity
- 54620 Pieces
- Reference Price
- USD 0.125944
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- ON Semiconductor
- Brief Description
- Automotive, AEC-Q101 TVS DIODE 5V 38.1V 2XDFN
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- TVS - Diodes
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- SZESD7421N2T5G.pdf
SZESD7421N2T5G Specifications
| Manufacturer Part Number | SZESD7421N2T5G |
|---|---|
| Future Part Number | FT-SZESD7421N2T5G |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | Automotive, AEC-Q101 |
| SZESD7421N2T5G Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | - |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown (Min) | 10.5V |
| Voltage - Clamping (Max) @ Ipp | 38.1V |
| Current - Peak Pulse (10/1000µs) | 16A (100ns) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | 0.3pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 2-XDFN |
| Supplier Device Package | 2-XDFN (1x0.6) (SOD-882) |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| SZESD7421N2T5G Weight | Contact Us |
| Replacement Part Number | SZESD7421N2T5G-FT |
