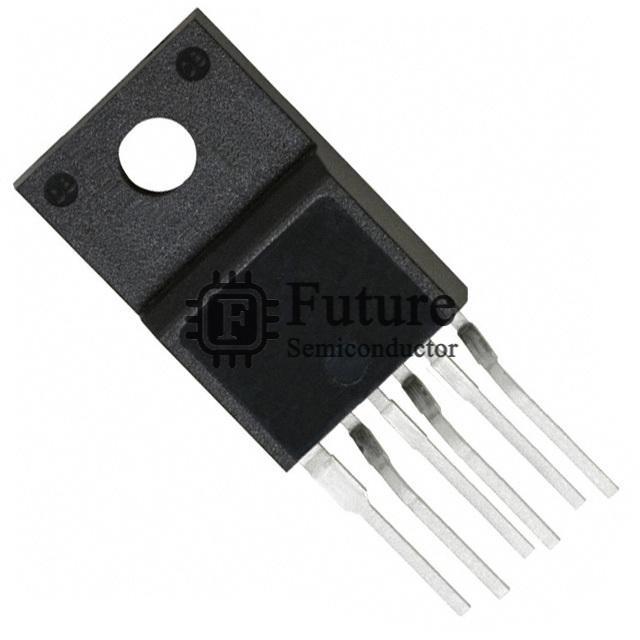

Sanken STR2W152D

Name: STR2W152D
Brand: Sanken
SKU: STR2W152D
Availability: InStock
Rating: 4.8 (487 reviews)

MFG Part Number: STR2W152D

Available Quantity: 73050 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Sanken

Brief Description: STR2W100D IC PWM AC/DC CONVERTER TO220F-6

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: PMIC - AC DC Converters, Offline Switchers

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: STR2W152D.pdf

STR2W152D Specifications

Manufacturer Part Number	STR2W152D
Future Part Number	FT-STR2W152D
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	STR2W100D
STR2W152D Status (Lifecycle)	In Stock
Part Status	Obsolete
Output Isolation	Isolated
Internal Switch(s)	Yes
Voltage - Breakdown	650V
Topology	Flyback
Voltage - Start Up	15.3V
Voltage - Supply (Vcc/Vdd)	8.1V ~ 32V
Duty Cycle	74%
Frequency - Switching	60kHz ~ 74kHz
Power (Watts)	60W
Fault Protection	Current Limiting, Over Load, Over Temperature, Over Voltage
Control Features	-
Operating Temperature	-20°C ~ 115°C (TA)
Package / Case	TO-220-6 Full Pack, Formed Leads
Supplier Device Package	TO-220F-6L
Mounting Type	Through Hole
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
STR2W152D Weight	Contact Us
Replacement Part Number	STR2W152D-FT
