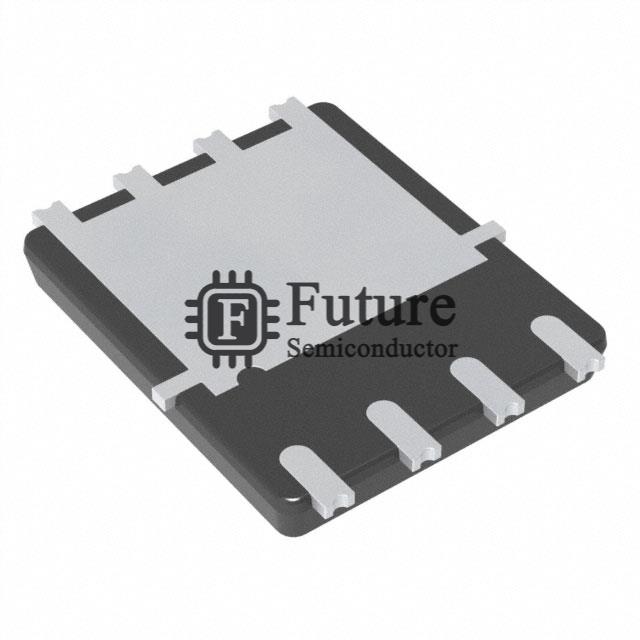

STMicroelectronics STLD125N4F6AG

Name: STLD125N4F6AG
Brand: STMicroelectronics
SKU: STLD125N4F6AG
Price: 0.944704 USD
Availability: InStock
Rating: 4.9 (19 reviews)

MFG Part Number: STLD125N4F6AG

Available Quantity: 83520 Pieces

Reference Price: USD 0.944704

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: STMicroelectronics

Brief Description: STripFET™ F6 MOSFET N-CH 40V 120A POWERFLAT

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: STLD125N4F6AG.pdf

STLD125N4F6AG Specifications

Manufacturer Part Number	STLD125N4F6AG
Future Part Number	FT-STLD125N4F6AG
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	STripFET™ F6
STLD125N4F6AG Status (Lifecycle)	In Stock
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6.5V, 10V
Rds On (Max) @ Id, Vgs	3 mOhm @ 75A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	91nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5600pF @ 10V
FET Feature	-
Power Dissipation (Max)	130W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PowerFlat™ (5x6) Dual Side
Package / Case	8-PowerWDFN
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
STLD125N4F6AG Weight	Contact Us
Replacement Part Number	STLD125N4F6AG-FT
