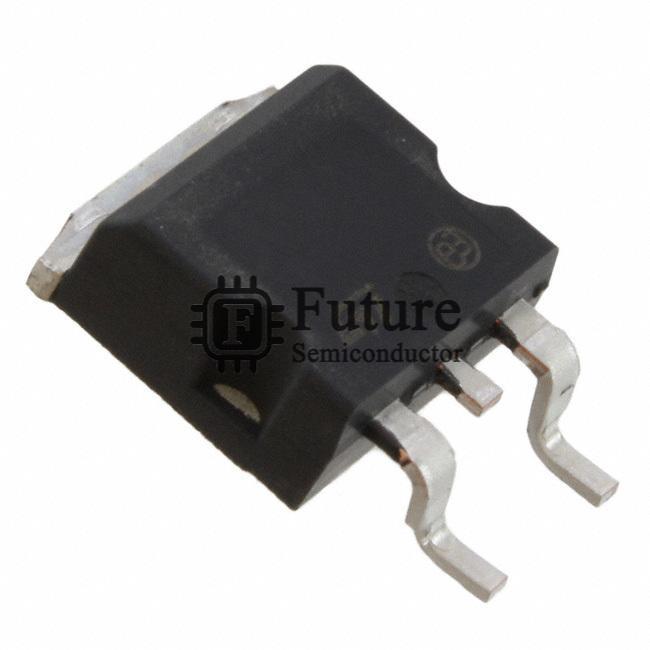

STMicroelectronics STH80N10F7-2

Name: STH80N10F7-2
Brand: STMicroelectronics
SKU: STH80N10F7-2
Price: 1.169536 USD
Availability: InStock
Rating: 4.9 (239 reviews)

MFG Part Number: STH80N10F7-2

Available Quantity: 21970 Pieces

Reference Price: USD 1.169536

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: STMicroelectronics

Brief Description: DeepGATE™, STripFET™ VII MOSFET N-CH 100V 80A H2PAK-2

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Transistors - FETs, MOSFETs - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: STH80N10F7-2.pdf

Request Quotation for STH80N10F7-2

Company Name

Contact Person

Phone Number

Address

Email

Message

STH80N10F7-2 Specifications

Manufacturer Part Number	STH80N10F7-2
Future Part Number	FT-STH80N10F7-2
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	DeepGATE™, STripFET™ VII
STH80N10F7-2 Status (Lifecycle)	In Stock
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	9.5 mOhm @ 40A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	45nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3100pF @ 50V
FET Feature	-
Power Dissipation (Max)	110W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	H2Pak-2
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
STH80N10F7-2 Weight	Contact Us
Replacement Part Number	STH80N10F7-2-FT
