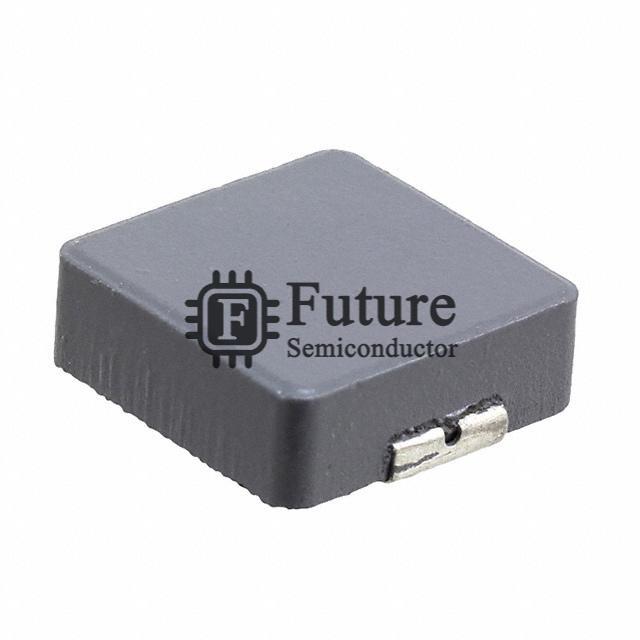

Bourns Inc. SRP1245A-R56M

Name: SRP1245A-R56M
Brand: Bourns Inc.
SKU: SRP1245A-R56M
Price: 0.7104 USD
Availability: InStock
Rating: 4.7 (18 reviews)

MFG Part Number: SRP1245A-R56M

Available Quantity: 84940 Pieces

Reference Price: USD 0.7104

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Bourns Inc.

Brief Description: SRP1245A FIXED Inductors 560NH 36A 1.5 MOHM SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: SRP1245A-R56M.pdf

Request Quotation for SRP1245A-R56M

Company Name

Contact Person

Phone Number

Address

Email

Message

SRP1245A-R56M Specifications

Manufacturer Part Number	SRP1245A-R56M
Future Part Number	FT-SRP1245A-R56M
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	SRP1245A
SRP1245A-R56M Status (Lifecycle)	In Stock
Part Status	Active
Type	Wirewound
Material - Core	Carbonyl Powder
Inductance	560nH
Tolerance	±20%
Current Rating	36A
Current - Saturation	55A
Shielding	Shielded
DC Resistance (DCR)	1.5 mOhm Max
Q @ Freq	20 @ 100kHz
Frequency - Self Resonant	60MHz
Ratings	AEC-Q200
Operating Temperature	-40°C ~ 150°C
Inductance Frequency - Test	100kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Max)	0.197" (5.00mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
SRP1245A-R56M Weight	Contact Us
Replacement Part Number	SRP1245A-R56M-FT
