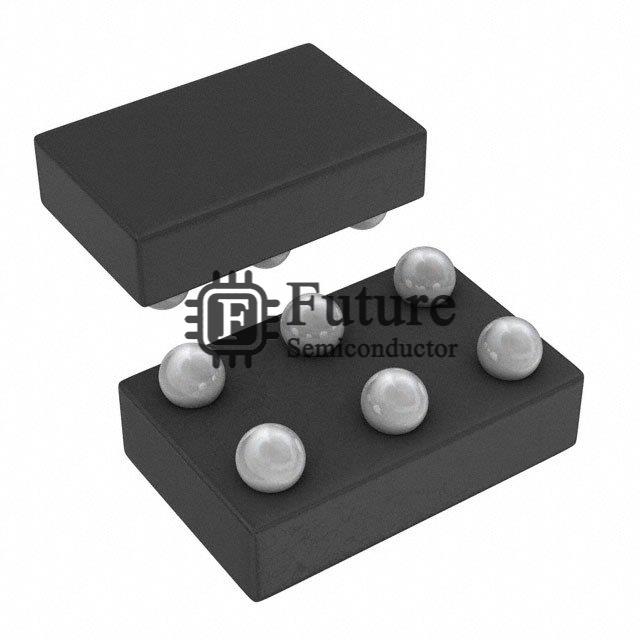

Texas Instruments SN74LVC2G14YZPR

Name: SN74LVC2G14YZPR
Brand: Texas Instruments
SKU: SN74LVC2G14YZPR
Price: 0.20648 USD
Availability: InStock
Rating: 4.7 (483 reviews)

MFG Part Number: SN74LVC2G14YZPR

Available Quantity: 20420 Pieces

Reference Price: USD 0.20648

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Texas Instruments

Brief Description: 74LVC IC INVERTER SCHMITT 2CH 6DSBGA

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Logic - Gates and Inverters

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: SN74LVC2G14YZPR.pdf

Request Quotation for SN74LVC2G14YZPR

Company Name

Contact Person

Phone Number

Address

Email

Message

SN74LVC2G14YZPR Specifications

Manufacturer Part Number	SN74LVC2G14YZPR
Future Part Number	FT-SN74LVC2G14YZPR
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	74LVC
SN74LVC2G14YZPR Status (Lifecycle)	In Stock
Part Status	Active
Logic Type	Inverter
Number of Circuits	2
Number of Inputs	2
Features	Schmitt Trigger
Voltage - Supply	1.65V ~ 5.5V
Current - Quiescent (Max)	10µA
Current - Output High, Low	32mA, 32mA
Logic Level - Low	0.3V ~ 1.4V
Logic Level - High	1.4V ~ 3.7V
Max Propagation Delay @ V, Max CL	4.3ns @ 5V, 50pF
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Supplier Device Package	6-DSBGA, 6-WCSP (1.4x0.9)
Package / Case	6-XFBGA, DSBGA
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
SN74LVC2G14YZPR Weight	Contact Us
Replacement Part Number	SN74LVC2G14YZPR-FT
