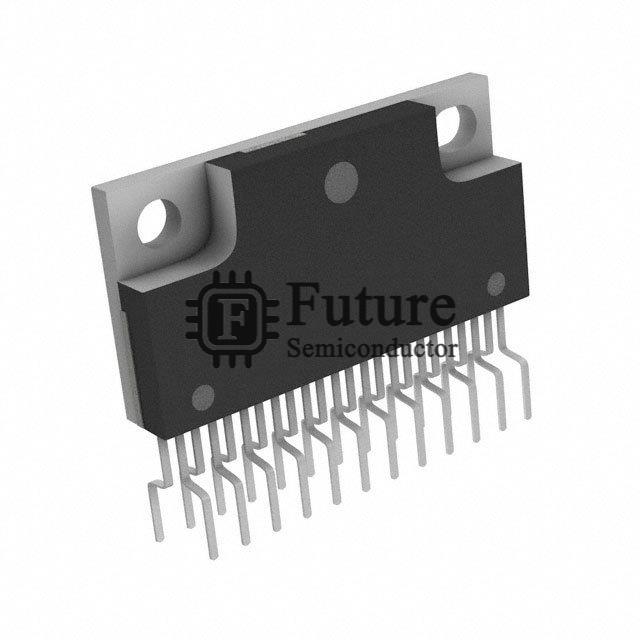

Home / Products / Integrated Circuits (ICs) / PMIC - Full, Half-Bridge Drivers / SLA6870MZ LF2171
Manufacturer Part Number | SLA6870MZ LF2171 |
---|---|
Future Part Number | FT-SLA6870MZ LF2171 |
SPQ / MOQ | Contact Us |
Packing Material | Reel/Tray/Tube/Others |
Series | - |
SLA6870MZ LF2171 Status (Lifecycle) | In Stock |
Part Status | Not For New Designs |
Output Configuration | Half Bridge (3) |
Applications | AC Motors |
Interface | Logic |
Load Type | Inductive |
Technology | Power MOSFET |
Rds On (Typ) | - |
Current - Output / Channel | 3A |
Current - Peak Output | 4.5A |
Voltage - Supply | 13.5V ~ 16.5V |
Voltage - Load | 400V (Max) |
Operating Temperature | -20°C ~ 150°C (TJ) |
Features | - |
Fault Protection | Current Limiting, Over Temperature, UVLO |
Mounting Type | Through Hole |
Package / Case | 24-SSIP Exposed Pad, Formed Leads |
Supplier Device Package | 24-SIP, LF2171 |
Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
SLA6870MZ LF2171 Weight | Contact Us |
Replacement Part Number | SLA6870MZ LF2171-FT |
