Home / Products / Isolators / Isolators - Gate Drivers / SI8283CD-IS
Silicon Labs SI8283CD-IS
- MFG Part Number
- SI8283CD-IS
- Available Quantity
- 79090 Pieces
- Reference Price
- USD 3.624
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Silicon Labs
- Brief Description
- - DGTL ISO 5KV 1CH GATE DVR 24SOIC
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Isolators - Gate Drivers
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- SI8283CD-IS.pdf
SI8283CD-IS Specifications
| Manufacturer Part Number | SI8283CD-IS |
|---|---|
| Future Part Number | FT-SI8283CD-IS |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | - |
| SI8283CD-IS Status (Lifecycle) | In Stock |
| Part Status | Not For New Designs |
| Technology | Capacitive Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 35kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 50ns, 50ns |
| Pulse Width Distortion (Max) | 5ns |
| Rise / Fall Time (Typ) | 5.5ns, 8.5ns |
| Current - Output High, Low | 2.5A, 3A |
| Current - Peak Output | 4A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Supply | 12V ~ 30V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |

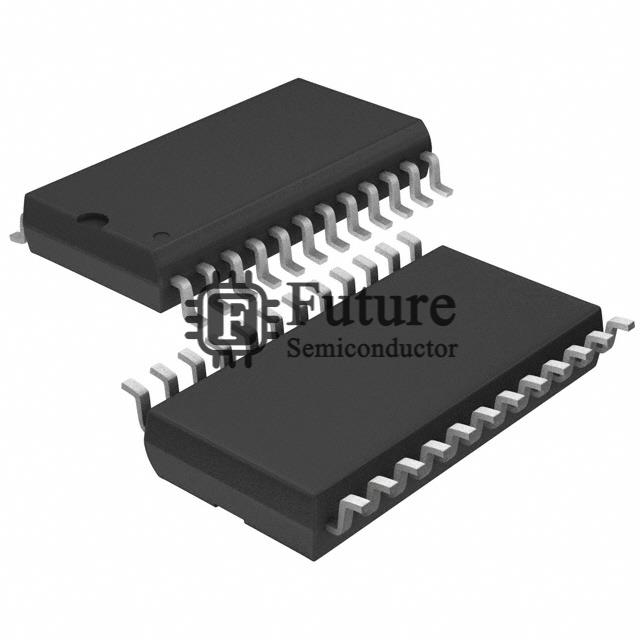

| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SOIC |
| Approvals | CQC, CSA, UR, VDE |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| SI8283CD-IS Weight | Contact Us |
| Replacement Part Number | SI8283CD-IS-FT |
