Home / Products / Circuit Protection / TVS - Diodes / SESD0201X1UN0020-090

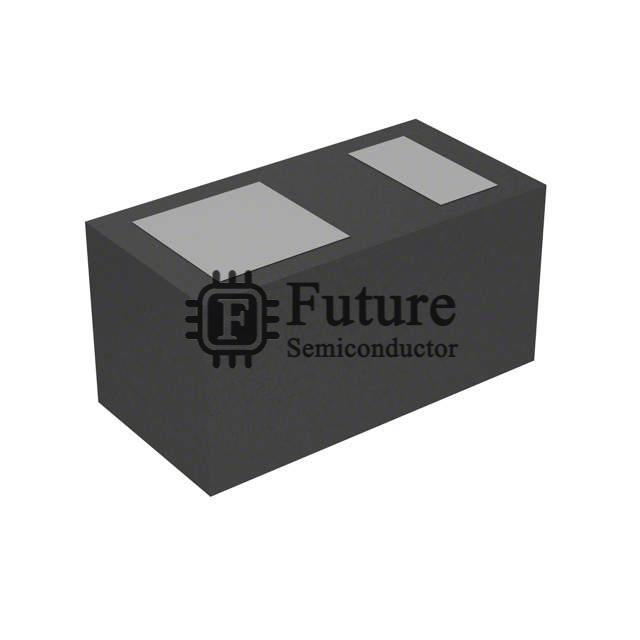

Littelfuse Inc. SESD0201X1UN0020-090
- MFG Part Number
- SESD0201X1UN0020-090
- Available Quantity
- 51320 Pieces
- Reference Price
- USD 0.160944
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- Littelfuse Inc.
- Brief Description
- Automotive, AEC-Q101, SESD, SPA® TVS DIODE 7V 9.2V 0201/DFN0603
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- TVS - Diodes
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- SESD0201X1UN0020-090.pdf
SESD0201X1UN0020-090 Specifications
| Manufacturer Part Number | SESD0201X1UN0020-090 |
|---|---|
| Future Part Number | FT-SESD0201X1UN0020-090 |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | Automotive, AEC-Q101, SESD, SPA® |
| SESD0201X1UN0020-090 Status (Lifecycle) | In Stock |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | 1 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 7V (Max) |
| Voltage - Breakdown (Min) | 9V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 9.2V (Typ) |
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | Automotive, HDMI |
| Capacitance @ Frequency | 0.2pF @ 3GHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201/DFN0603 |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| SESD0201X1UN0020-090 Weight | Contact Us |
| Replacement Part Number | SESD0201X1UN0020-090-FT |
