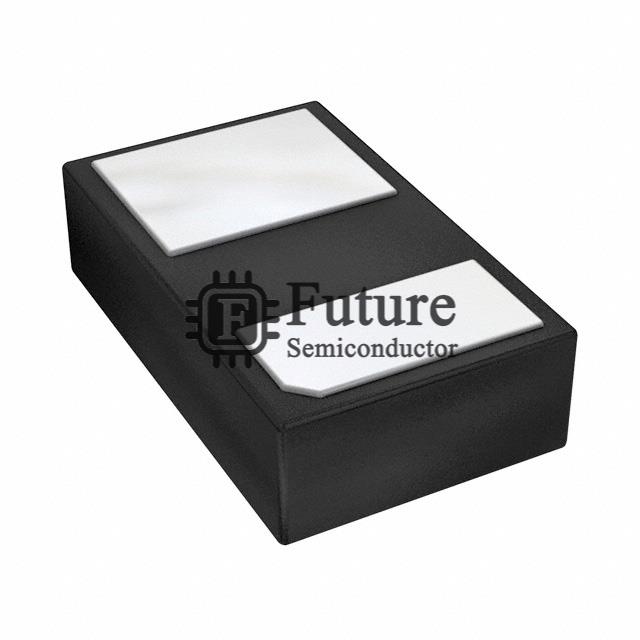

Diodes Incorporated SDM05U40CSP-7

Name: SDM05U40CSP-7
Brand: Diodes Incorporated
SKU: SDM05U40CSP-7
Price: 0.06104 USD
Availability: InStock
Rating: 4.6 (179 reviews)

MFG Part Number: SDM05U40CSP-7

Available Quantity: 17260 Pieces

Reference Price: USD 0.06104

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Diodes Incorporated

Brief Description: - DIODE SCHTKY 40V 500MA X3WLB1006

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Rectifiers - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: SDM05U40CSP-7.pdf

Request Quotation for SDM05U40CSP-7

Company Name

Contact Person

Phone Number

Address

Email

Message

SDM05U40CSP-7 Specifications

Manufacturer Part Number	SDM05U40CSP-7
Future Part Number	FT-SDM05U40CSP-7
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
SDM05U40CSP-7 Status (Lifecycle)	In Stock
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	460mV @ 500mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	75µA @ 40V
Capacitance @ Vr, F	35pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	2-XDFN
Supplier Device Package	X3-WLB1006-2
Operating Temperature - Junction	-55°C ~ 150°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
SDM05U40CSP-7 Weight	Contact Us
Replacement Part Number	SDM05U40CSP-7-FT
