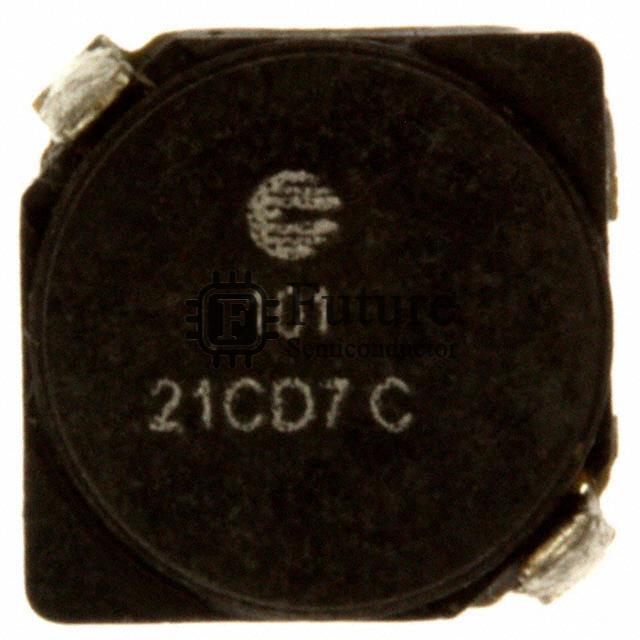

Eaton - Electronics Division SD7030-101-R

Name: SD7030-101-R
Brand: Eaton - Electronics Division
SKU: SD7030-101-R
Price: 0.68572 USD
Availability: InStock
Rating: 4.9 (297 reviews)

MFG Part Number: SD7030-101-R

Available Quantity: 72230 Pieces

Reference Price: USD 0.68572

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Eaton - Electronics Division

Brief Description: SD7030 FIXED Inductors 95.5UH 700MA 535 MOHM

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Fixed Inductors

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: SD7030-101-R.pdf

Request Quotation for SD7030-101-R

Company Name

Contact Person

Phone Number

Address

Email

Message

SD7030-101-R Specifications

Manufacturer Part Number	SD7030-101-R
Future Part Number	FT-SD7030-101-R
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	SD7030
SD7030-101-R Status (Lifecycle)	In Stock
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	95.5µH
Tolerance	±30%
Current Rating	700mA
Current - Saturation	540mA
Shielding	Shielded
DC Resistance (DCR)	535 mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max)	0.118" (3.00mm)
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
SD7030-101-R Weight	Contact Us
Replacement Part Number	SD7030-101-R-FT
