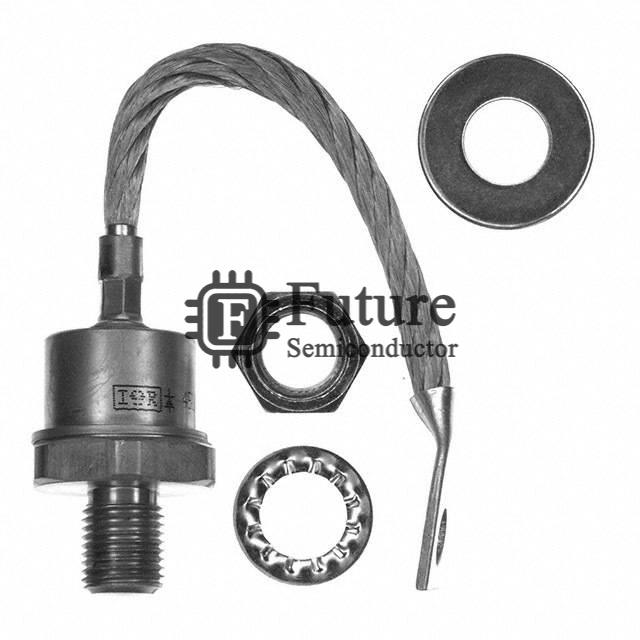

Vishay Semiconductor Diodes Division SD103R16S15PV

Name: SD103R16S15PV
Brand: Vishay Semiconductor Diodes Division
SKU: SD103R16S15PV
Price: 37.42816 USD
Availability: InStock
Rating: 4.6 (658 reviews)

MFG Part Number: SD103R16S15PV

Available Quantity: 16770 Pieces

Reference Price: USD 37.42816

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Vishay Semiconductor Diodes Division

Brief Description: - DIODE GEN PURP 1.6KV 110A DO205

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Rectifiers - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: SD103R16S15PV.pdf

Request Quotation for SD103R16S15PV

Company Name

Contact Person

Phone Number

Address

Email

Message

SD103R16S15PV Specifications

Manufacturer Part Number	SD103R16S15PV
Future Part Number	FT-SD103R16S15PV
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
SD103R16S15PV Status (Lifecycle)	In Stock
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1600V
Current - Average Rectified (Io)	110A
Voltage - Forward (Vf) (Max) @ If	2.23V @ 345A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	1.5µs
Current - Reverse Leakage @ Vr	35mA @ 1600V
Capacitance @ Vr, F	-
Mounting Type	Stud Mount
Package / Case	DO-205AC, DO-30, Stud
Supplier Device Package	DO-205AC (DO-30)
Operating Temperature - Junction	-40°C ~ 125°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
SD103R16S15PV Weight	Contact Us
Replacement Part Number	SD103R16S15PV-FT
