Home / Products / Inductors, Coils, Chokes / Fixed Inductors / SC54B-220

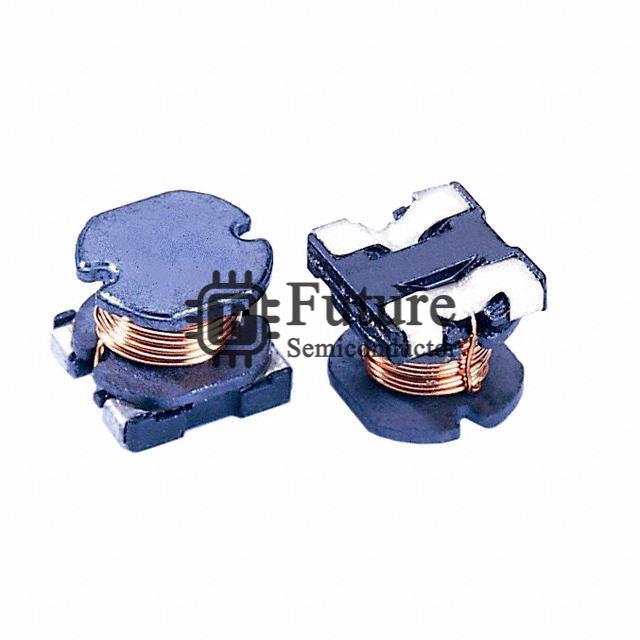

SC54B-220 Image

Signal Transformer SC54B-220

MFG Part Number
SC54B-220
Available Quantity
24410 Pieces
Reference Price
USD 0.38484
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
Signal Transformer
Brief Description
SC54B FIXED Inductors 22UH 1.6A 180 MOHM SMD
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Fixed Inductors
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
SC54B-220.pdf
SC54B-220 Image

Request Quotation for SC54B-220

Company Name
Contact Person
Phone Number
Address
Email
Message

SC54B-220 Specifications

Manufacturer Part Number SC54B-220
Future Part Number FT-SC54B-220
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series SC54B
SC54B-220 Status (Lifecycle) In Stock
Part Status Active
Type Wirewound
Material - Core -
Inductance 22µH
Tolerance ±20%
Current Rating 1.6A
Current - Saturation 1.11A
Shielding Unshielded
DC Resistance (DCR) 180 mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 2.52MHz
Features -
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.240" L x 0.220" W (6.10mm x 5.60mm)
Height - Seated (Max) 0.191" (4.85mm)
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
SC54B-220 Weight Contact Us
Replacement Part Number SC54B-220-FT
