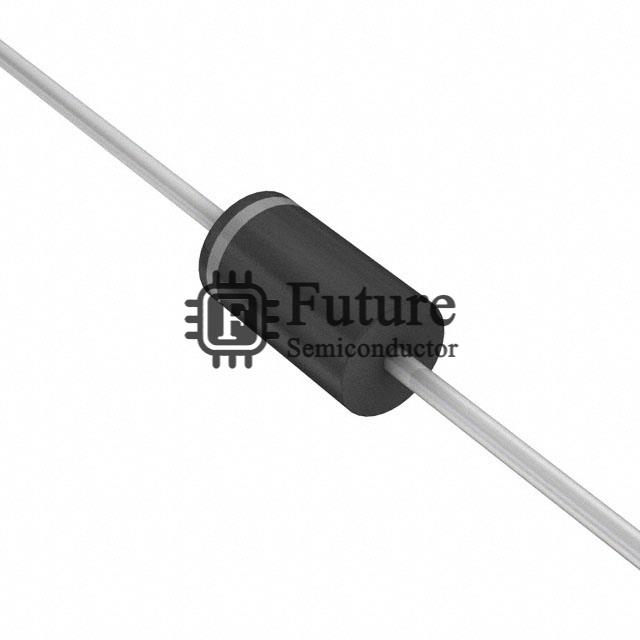

Comchip Technology SB560ET-G

Name: SB560ET-G
Brand: Comchip Technology
SKU: SB560ET-G
Price: 0.1224 USD
Availability: InStock
Rating: 4.7 (142 reviews)

MFG Part Number: SB560ET-G

Available Quantity: 20340 Pieces

Reference Price: USD 0.1224

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Comchip Technology

Brief Description: - DIODE SCHOTTKY 60V 5A DO201AD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Diodes - Rectifiers - Single

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: SB560ET-G.pdf

Request Quotation for SB560ET-G

Company Name

Contact Person

Phone Number

Address

Email

Message

SB560ET-G Specifications

Manufacturer Part Number	SB560ET-G
Future Part Number	FT-SB560ET-G
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
SB560ET-G Status (Lifecycle)	In Stock
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	60V
Current - Average Rectified (Io)	5A
Voltage - Forward (Vf) (Max) @ If	700mV @ 5A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	-
Current - Reverse Leakage @ Vr	500µA @ 60V
Capacitance @ Vr, F	500pF @ 4V, 1MHz
Mounting Type	Through Hole
Package / Case	DO-201AD, Axial
Supplier Device Package	DO-201AD
Operating Temperature - Junction	-65°C ~ 150°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
SB560ET-G Weight	Contact Us
Replacement Part Number	SB560ET-G-FT
