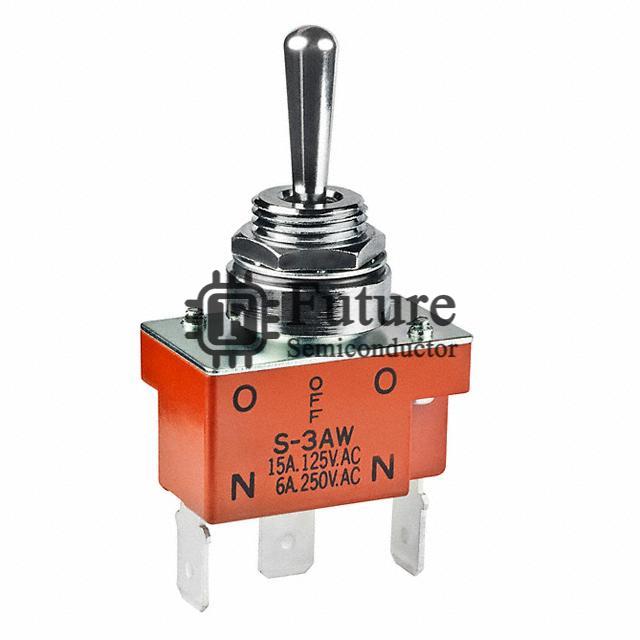

NKK Switches S3AWF

Name: S3AWF
Brand: NKK Switches
SKU: S3AWF
Price: 8.592 USD
Availability: InStock
Rating: 4.8 (800 reviews)

MFG Part Number: S3AWF

Available Quantity: 13530 Pieces

Reference Price: USD 8.592

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: NKK Switches

Brief Description: S SWITCH TOGGLE SPDT 15A 125V

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Toggle Switches

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: S3AWF.pdf

Request Quotation for S3AWF

Company Name

Contact Person

Phone Number

Address

Email

Message

S3AWF Specifications

Manufacturer Part Number	S3AWF
Future Part Number	FT-S3AWF
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	S
S3AWF Status (Lifecycle)	In Stock
Part Status	Active
Circuit	SPDT
Switch Function	On-Off-On
Current Rating	15A (AC), 20A (DC)
Voltage Rating - AC	125V
Voltage Rating - DC	30V
Actuator Type	Standard Round
Actuator Length	17.50mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Mounting Type	Panel Mount
Termination Style	Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions	Circular - 12.50mm Dia
Bushing Thread	M12 x 1
Ingress Protection	IP67 - Dust Tight, Waterproof
Features	-
Operating Temperature	-30°C ~ 70°C
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
S3AWF Weight	Contact Us
Replacement Part Number	S3AWF-FT
