Home / Products / Switches / Toggle Switches / S3AWB

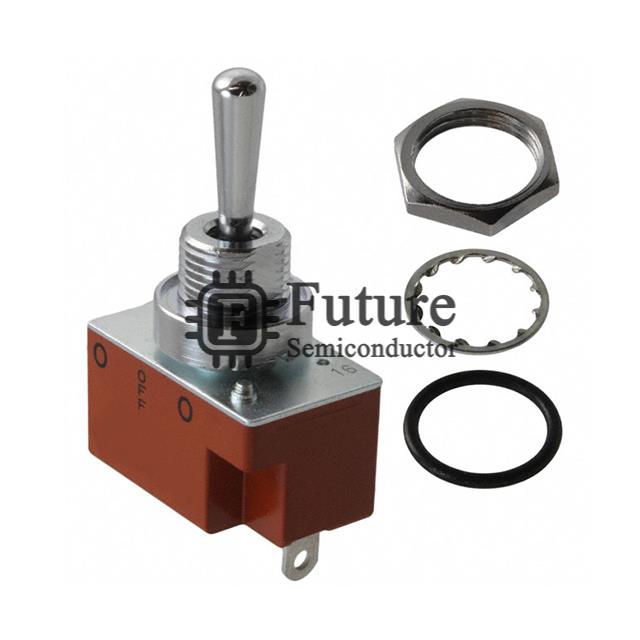

S3AWB Image

NKK Switches S3AWB

MFG Part Number
S3AWB
Available Quantity
36300 Pieces
Reference Price
USD 16.056
Our Price
We have a big discount, please contact us
Shipping Date
We can ship out today
Manufacturer
NKK Switches
Brief Description
S STD SIZE TOGGLE/MEDIUM CAPACITY/
Lead Free Status / RoHS Status
RoHS Compliant (Lead Free)
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Date Code (D/C)
New
Product Category
Toggle Switches
Stock Resource
Franchised Distributor
Warranty
360 days quality guarantee
Datasheet
S3AWB.pdf
S3AWB Image

Request Quotation for S3AWB

Company Name
Contact Person
Phone Number
Address
Email
Message

S3AWB Specifications

Manufacturer Part Number S3AWB
Future Part Number FT-S3AWB
SPQ / MOQ Contact Us
Packing Material Reel/Tray/Tube/Others
Series S
S3AWB Status (Lifecycle) In Stock
Part Status Active
Circuit SPDT
Switch Function On-Off-On
Current Rating 15A (AC), 20A (DC)
Voltage Rating - AC 125V
Voltage Rating - DC 30V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Mounting Type Panel Mount
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Ingress Protection IP68 - Dust Tight, Waterproof
Features Waterproof Boot
Operating Temperature -30°C ~ 70°C
Country of Origin USA/JAPAN/MALAYSIA/MEXICO/CN
S3AWB Weight Contact Us
Replacement Part Number S3AWB-FT
