Home / Products / Isolators / Optoisolators - Triac, SCR Output / S2S4BY

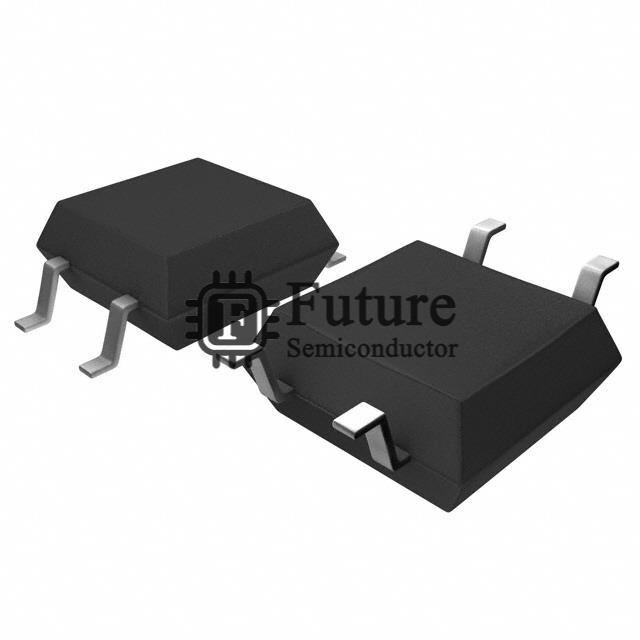

Sharp Microelectronics S2S4BY

Name: S2S4BY
Brand: Sharp Microelectronics
SKU: S2S4BY
Availability: InStock
Rating: 4.6 (38 reviews)

MFG Part Number: S2S4BY

Available Quantity: 17500 Pieces

Reference Price: USD 0

Our Price: We have a big discount, please contact us

Shipping Date: We can ship out today

Manufacturer: Sharp Microelectronics

Brief Description: - OPTOISOLATOR 3.75KV TRIAC 4SMD

Lead Free Status / RoHS Status: RoHS Compliant (Lead Free)

Moisture Sensitivity Level (MSL): 1 (Unlimited)

Date Code (D/C): New

Product Category: Optoisolators - Triac, SCR Output

Stock Resource: Franchised Distributor

Warranty: 360 days quality guarantee

Datasheet: S2S4BY.pdf

S2S4BY Specifications

Manufacturer Part Number	S2S4BY
Future Part Number	FT-S2S4BY
SPQ / MOQ	Contact Us
Packing Material	Reel/Tray/Tube/Others
Series	-
S2S4BY Status (Lifecycle)	In Stock
Part Status	Obsolete
Output Type	Triac
Zero Crossing Circuit	Yes
Number of Channels	1
Voltage - Isolation	3750Vrms
Voltage - Off State	600V
Static dV/dt (Min)	100V/µs
Current - LED Trigger (Ift) (Max)	10mA
Current - On State (It (RMS)) (Max)	50mA
Current - Hold (Ih)	3.5mA
Turn On Time	50µs (Max)
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50mA
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD
Supplier Device Package	4-SMD
Approvals	CSA, UR, VDE
Country of Origin	USA/JAPAN/MALAYSIA/MEXICO/CN
S2S4BY Weight	Contact Us
Replacement Part Number	S2S4BY-FT
