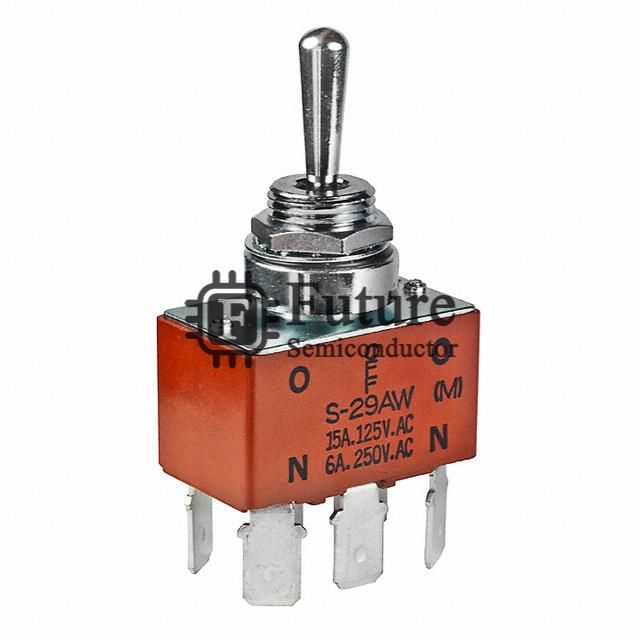

NKK Switches S29AWF
- MFG Part Number
- S29AWF
- Available Quantity
- 72030 Pieces
- Reference Price
- USD 11.072
- Our Price
- We have a big discount, please contact us
- Shipping Date
- We can ship out today
- Manufacturer
- NKK Switches
- Brief Description
- S SWITCH TOGGLE DPDT 15A 125V
- Lead Free Status / RoHS Status
- RoHS Compliant (Lead Free)
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Date Code (D/C)
- New
- Product Category
- Toggle Switches
- Stock Resource
- Franchised Distributor
- Warranty
- 360 days quality guarantee
- Datasheet
- S29AWF.pdf
S29AWF Specifications
| Manufacturer Part Number | S29AWF |
|---|---|
| Future Part Number | FT-S29AWF |
| SPQ / MOQ | Contact Us |
| Packing Material | Reel/Tray/Tube/Others |
| Series | S |
| S29AWF Status (Lifecycle) | In Stock |
| Part Status | Active |
| Circuit | DPDT |
| Switch Function | On-Off-Mom |
| Current Rating | 15A (AC), 20A (DC) |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 30V |
| Actuator Type | Standard Round |
| Actuator Length | 17.50mm |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Illumination Voltage (Nominal) | - |
| Mounting Type | Panel Mount |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Panel Cutout Dimensions | Circular - 12.50mm Dia |
| Bushing Thread | M12 x 1 |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | - |
| Operating Temperature | -30°C ~ 70°C |
| Country of Origin | USA/JAPAN/MALAYSIA/MEXICO/CN |
| S29AWF Weight | Contact Us |
| Replacement Part Number | S29AWF-FT |
